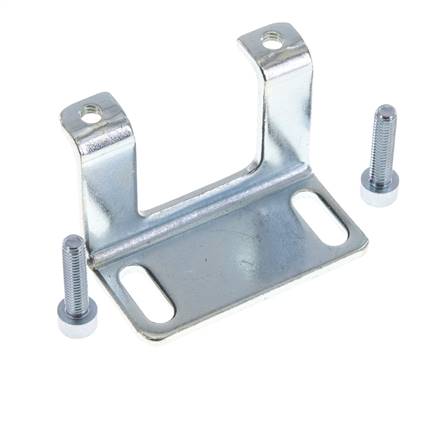

STANDARD Mounting brackets , Standard 3

ZW DFX 30

Exemplary representation: Fine filter - standard Schematic symbol: Filter
12,72€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.

Materials:
Body: Zinc die-casting Z410, condensate container: Polycarbonate, filter insert: Borosilicate microfibre fleece

Temperature range:
0°C to max. +50°C (metal bowl up to max. +90°C)

Dust removal:
> 0,01 µm (99,999 %)

Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)

Input pressure:
1.5 - 16 bar (with metal bowl 0 - 25 bar)

Condensate draining:
Semi-automatic** (metal container: manual)

Media:
Compressed air, neutral gases

Optional:
Version with protection cage (not series 5)-S, version with metal tank with manual drain (0 - 25 bar) -M
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Mounting brackets
Model series Standard 3
Temperature range [°C] 0 to +90
ZWDFX30
{{ $t('shop.all.gewicht') }} 95 g / pcs
{{ $t('shop.all.gtin') }} 4050571817510
{{ $t('shop.display.artikel.zollwarennummer') }} 84819000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 605) atlas9_seiten/605.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
    3D CAD file (volume model) protected/cad/3d/70164/zwdfx30#329088.stp
