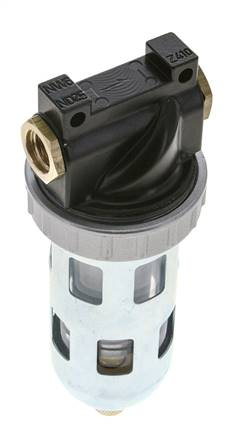

STANDARD Microfilter (sub-microfilter) G 1/4", Standard 1
{{ $t('shop.all.artikelnummer') }}:
DFX 11 S
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.
Materials:
Body: Zinc die-casting Z410, condensate container: Polycarbonate, filter insert: Borosilicate microfibre fleece
Temperature range:
0°C to max. +50°C (metal bowl up to max. +90°C)
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Input pressure:
1.5 - 16 bar (with metal bowl 0 - 25 bar)
Condensate draining:
Semi-automatic** (metal container: manual)
Media:
Compressed air, neutral gases
Optional:
Version with protection cage (not series 5)-S, version with metal tank with manual drain (0 - 25 bar) -M
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.
Materials:
Body: Zinc die-casting Z410, condensate container: Polycarbonate, filter insert: Borosilicate microfibre fleece
Temperature range:
0°C to max. +50°C (metal bowl up to max. +90°C)
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Input pressure:
1.5 - 16 bar (with metal bowl 0 - 25 bar)
Condensate draining:
Semi-automatic** (metal container: manual)
Media:
Compressed air, neutral gases
Optional:
Version with protection cage (not series 5)-S, version with metal tank with manual drain (0 - 25 bar) -M
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Microfilter (sub-microfilter) |
| Model series | Standard 1 |
| Thread | G 1/4" |
| Flow* [l/min] | 610 |
| Container design | Plastic container with protective cage |
| Condensate drain | Semi-automatic |
| Mounting brackets | ZW DFX 10 |
| Replacement filter 0,01 µm | FILTER DFX 10 |
| input pressure [bar] | 1,5 - 16 |
| Temperature range [°C] | 0 to +50 |
| Max. condensate amount [cm³] | 12 |
| H [mm] | 154 |
| H1 [mm] | 135 |
| L [mm] | 57 (Ø 56) |
{{ $t('shop.display.artikel.info') }} DFX11S
| {{ $t('shop.all.gewicht') }} | 470 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571248451 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84213925 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 605) atlas9_seiten/605.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70164/dfx11s#329072.stp
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70164/dfx11s#329072.stp
