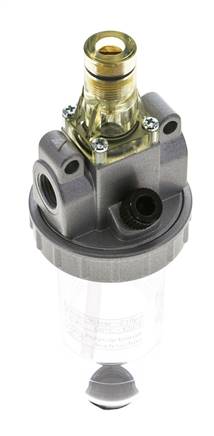

STANDARD lubricator, G 1/4", Standard 1, Plastic container
{{ $t('shop.all.artikelnummer') }}:
DO 11
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc Z410, oil tank: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
0 - 16 bar (with metal bowl 0 - 25 bar, model series 8: 0 - 20 bar)
Oil metering at 500 l/min:
0,5 - 1 drops/min
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•can be filled with oil while under pressure
Optional:
Version with protective cage -S, Version with metal bowl* (0 - 25 bar model series 8: 0 - 20 bar)-M
Body: die-cast zinc Z410, oil tank: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
0 - 16 bar (with metal bowl 0 - 25 bar, model series 8: 0 - 20 bar)
Oil metering at 500 l/min:
0,5 - 1 drops/min
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•can be filled with oil while under pressure
Optional:
Version with protective cage -S, Version with metal bowl* (0 - 25 bar model series 8: 0 - 20 bar)-M
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Standard 1 |
| Thread | G 1/4" |
| flow [l/min] | 50 - 1250 |
| Container design | Plastic container |
| Mounting brackets | ZW 10 |
| input pressure [bar] | 0 - 16 |
| Oil supply [cm³] | 40 |
| Reaction limit (6 bar) [l/min] | 50 |
| H [mm] | 169 |
| H1 [mm] | 118 |
| L [mm] | 50 |
{{ $t('shop.display.artikel.info') }} DO11
| {{ $t('shop.all.gewicht') }} | 410 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571263904 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84248970 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 606) atlas9_seiten/606.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
{{ $t('shop.all.unverbindliche_richtwerte') }}
