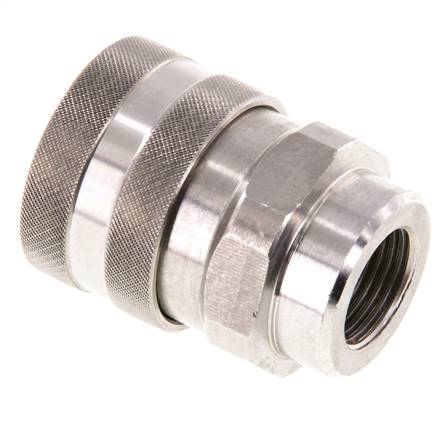

Stainless steel Coupling socket for foam application gun G 3/8" (IG)
Item number:
KDGI 38 ESWA
Item description
Materials:
Coupling sockets: 1.4305, coupling plug: 1.4034, seal: EPDM
Temperature range:
0 to +150 °C
Operating pressure:
200 bar
Coupling sockets: 1.4305, coupling plug: 1.4034, seal: EPDM
Temperature range:
0 to +150 °C
Operating pressure:
200 bar
Properties
| Version | Coupling socket |
| Thread | G 3/8" (female thread) |
| DN [mm] | 12 |
Further information on KDGI38ESWA
| Weight | 135 g / pcs |
| GTIN | 4050571396695 |
| Customs duty number | 73071990 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 483) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
