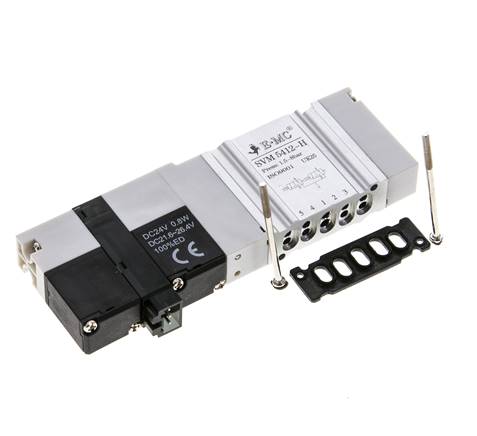

Solenoid valve for S1V, 2x 3/2-way (NO/NO)
{{ $t('shop.all.artikelnummer') }}:
SVM 5412-H
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: Aluminium, gaskets: NBR, pilot: Plastic
Operating pressure:
1.5 - 8 bar (5/3-directional: 2 - 8 bar)
Media:
oiled and unoiled filtered compressed air
Switching time:
<15 ms, max. 5 switching cycles / sec. (5/3-directional: max. 3 switching cycles / sec.)
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,8 W / valve solenoid
Protection class:
IP 40
Service life:
min. 40 million switching cycles
Version:
with LED switching status display
Scope of delivery:
Valve including screws and gasket
Note:
These valves can simply be screwed onto a valve position of an existing valve terminal to extend the functional range of a standard terminal or to replace a defective valve.
Body and slider: Aluminium, gaskets: NBR, pilot: Plastic
Operating pressure:
1.5 - 8 bar (5/3-directional: 2 - 8 bar)
Media:
oiled and unoiled filtered compressed air
Switching time:
<15 ms, max. 5 switching cycles / sec. (5/3-directional: max. 3 switching cycles / sec.)
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,8 W / valve solenoid
Protection class:
IP 40
Service life:
min. 40 million switching cycles
Version:
with LED switching status display
Scope of delivery:
Valve including screws and gasket
Note:
These valves can simply be screwed onto a valve position of an existing valve terminal to extend the functional range of a standard terminal or to replace a defective valve.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Connection plate valve |
| function | 2x 3/2-way (NO/NO) |
| Code | H |
| flow [l/min] | 330 |
{{ $t('shop.display.artikel.info') }} SVM5412-H
| {{ $t('shop.all.gewicht') }} | 80 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571917012 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
