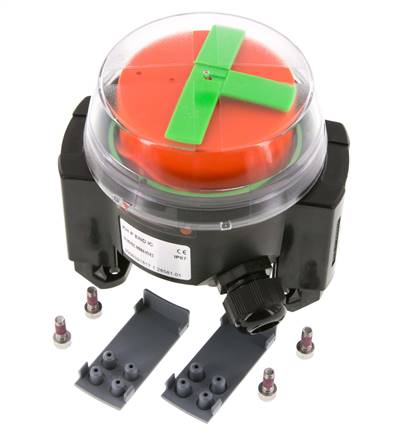

Signalbox Compact, inductive sensor
{{ $t('shop.all.artikelnummer') }}:
KH P END IC
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: PA, cover: Lexan 143 R, selector shaft: POM, seals: NBR, no metal parts
Temperature range:
-20 to +70 °C
Protection class:
IP 67
Connection dimensions:
Fits on drilling patterns 80 x 30 and 130 x 30 (not on actuator with size 1 and 2), variable shaft height between 20, 30, 40 and 50 mm
Advantages:
•to a large extent visual position indicator RED / GREEN,
•display on drilling pattern of the ball valve is easily adjustable (T,L)
Housing: PA, cover: Lexan 143 R, selector shaft: POM, seals: NBR, no metal parts
Temperature range:
-20 to +70 °C
Protection class:
IP 67
Connection dimensions:
Fits on drilling patterns 80 x 30 and 130 x 30 (not on actuator with size 1 and 2), variable shaft height between 20, 30, 40 and 50 mm
Advantages:
•to a large extent visual position indicator RED / GREEN,
•display on drilling pattern of the ball valve is easily adjustable (T,L)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Switch type | inductive sensor |
| Switch capacity | 10 - 30 V (DC) / 100 mA |
| Switch function | 2x NO contact (PNP) |
{{ $t('shop.display.artikel.info') }} KHPENDIC
| {{ $t('shop.all.gewicht') }} | 440 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571427559 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 544) atlas9_seiten/544.pdf
Documentation doku/khpend.pdf
3D CAD file (volume model) protected/cad/3d/73227/khpendic#28877.stp
Documentation doku/khpend.pdf
3D CAD file (volume model) protected/cad/3d/73227/khpendic#28877.stp
