Signalbox Classic, inductive sensor

KH P END I

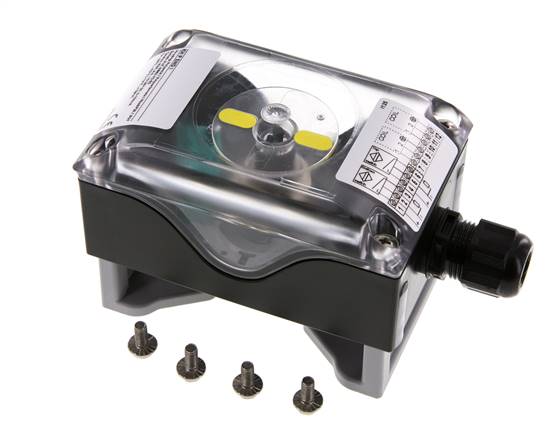

Exemplary representation: Universal signal box for pneumatic part-turn actuators
270,59€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: PA6, cover: Polycarbonate, selector shaft: PA6, seals: EPDM and NBR, assembly bridge: PA6, screws: 1.4301

Temperature range:
-20°C up to max. +80°C (KH P END P: -10°C up to max. +60°C)

Protection class:
IP 67 (KH P END P: IP 65)

Connection dimensions:
Fits hole patterns 50 x 25, 80 x 30 and 130 x 30, shaft height variably adjustable between 20 and 30 mm, fits all common drives but not PDD 050 & PDE 050.

Warning:
For assembly on actuators of size 1 in connection with Namur valve, it may be necessary to assemble a spacer plate (DR NAMUR DIS 6) between the valve and the actuator.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Switch type inductive sensor
Switch capacity 10 - 30 V (DC) / 100 mA
Switch function 2x NO contact (PNP)
Temperature range [°C] -20 to +80
IP protection class IP 67
KHPENDI
{{ $t('shop.all.gewicht') }} 290 g / pcs
{{ $t('shop.all.gtin') }} 4050571427542
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 544) atlas9_seiten/544.pdf
    Documentation doku/khpend.pdf
    Declaration of Conformity konf_erkl/konformitaetserklaerung_khpendi_khpendm_khpendp_la.pdf
    3D CAD file (volume model) protected/cad/3d/72530/khpendi19782.stp

  • {{ $t('shop.display.datenblatt.titel') }} (Print view)


{{ $t('shop.all.unverbindliche_richtwerte') }}
