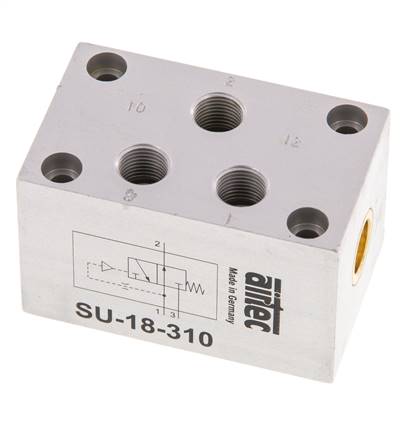

Signal interrupter G 1/8", Series Precision
{{ $t('shop.all.artikelnummer') }}:
SU 18 310
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, internal parts: aluminium and stainless steel (standard design: brass). Seals: plastic and NBR
Media:
oiled and unoiled filtered compressed air
Function:
This valve interrupts a continuous signal, so that from a continuous signal at the inlet connection 1, there is only a short pulse at output 2. A signal arriving at 1 has an uninterrupted flow up to output 2. When the pulse duration elapses, connection is 1 blocked and output 2 deaerates towards 3.
Body: anodized aluminium, internal parts: aluminium and stainless steel (standard design: brass). Seals: plastic and NBR
Media:
oiled and unoiled filtered compressed air
Function:
This valve interrupts a continuous signal, so that from a continuous signal at the inlet connection 1, there is only a short pulse at output 2. A signal arriving at 1 has an uninterrupted flow up to output 2. When the pulse duration elapses, connection is 1 blocked and output 2 deaerates towards 3.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Precision |
| Thread (2x) | G 1/8" |
| Thread exhaust air (1x) | G 1/8" |
| Pulse duration [s] | approx. 0.3 |
| Operating pressure [bar] | 3 - 10 |
| Temperature range [°C] | -10 to +70 |
{{ $t('shop.display.artikel.info') }} SU18310
| {{ $t('shop.all.gewicht') }} | 190 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571649494 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 781) atlas9_seiten/781.pdf
3D CAD file (volume model) protected/cad/3d/70001/su18310#14115.stp
3D CAD file (volume model) protected/cad/3d/70001/su18310#14115.stp
