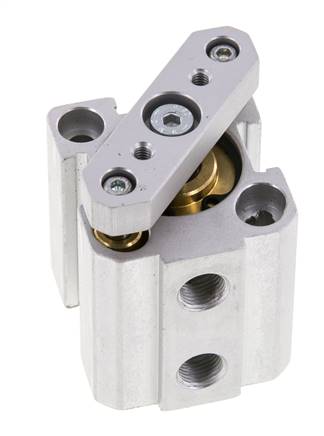

Short stroke cylinder, non-rotating, 25, stroke 5mm
{{ $t('shop.all.artikelnummer') }}:
NDM 25/5 A
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
G
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
G
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 25 |
| Stroke [mm] | 5 |
| P (compressed air port) | G 1/8" |
| A [mm] | 44,5 |
| B [mm] | 40 |
| C2 | M 4 |
| D [mm] | 10 |
| F [mm] | 5,8 |
| G [mm] | 9,0 |
| H [mm] | 24,5 |
| I [mm] | 26 |
| J [mm] | 10,5 |
| L [mm] | 38,5 |
| M [mm] | 15,5 |
| N [mm] | 28,0 |
| O [mm] | 14,0 |
| Q [mm] | 5,7 |
| R [mm] | 5,7 |
| S [mm] | 42,0 |
| T [mm] | 10 |
| V [mm] | 8 |
| W [mm] | 5,5 |
| X [mm] | 22 |
| Y [mm] | 11 |
| Z [mm] | 15 |
| AA [mm] | 5,5 |
| AB [mm] | 8 |
{{ $t('shop.display.artikel.info') }} NDM25/5A
| {{ $t('shop.all.gewicht') }} | 210 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571524272 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84799070 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 863_864) atlas9_seiten/863_864.pdf
