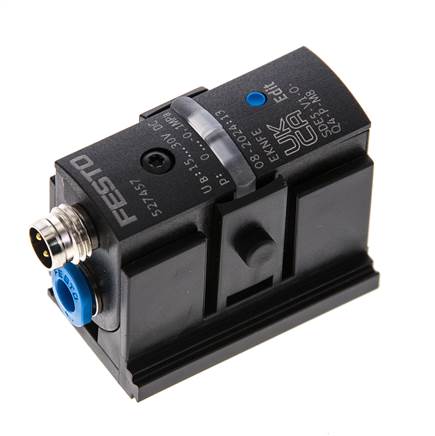

SDE5-V1-O-Q4-P-M8 (527457) pressure sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO013290
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Permission |
RCM mark, c UL us - Recognized (OL) |
| CE certificate (see declaration of conformity) |
acc. to EU-EMV Directive, acc. to EU-RoHS Directive |
| KC-mark | KC-EMV |
| Material information | RoHs compliant |
| Measured parameter | Relative pressure |
| Measurement process | Piezoresistive pressure sensor |
| Pressure measurement range starting value [bar] | 0 |
| Pressure measurement range end value [bar] | -1 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible |
| Medium temperature [°C] | 0 to 50 |
| ambient temperature [°C] | 0 to 50 |
| Repeatability in ± %FS [%FS] | 0,3 |
| Temperature coefficient in ± %FS/K [%FS/K] | 0,05 |
| Control output | PNP |
| Switch function | Threshold value with fixed hysteresis |
| Switching element function | NO contact |
| Max. output current [mA] | 100 |
| Short circuit resistance | yes |
| Operating voltage range DC [V] | 15 to 30 |
| Reverse polarity protection | for all electrical connections |
| Electrical connection |
M8x1, 3 pin, acc. to EN 60947-5-2, Round shape, Plug |
| Fastening type | With Accessories |
| installation position | arbitrary |
| Pneumatic connection | QS-4 |
| Product weight [g] | 19 |
| Housing material |
PA, POM |
| Switching status indicator | LED yellow |
| Settings range threshold value [%] | 0 to 100 |
| Protection category | IP40 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
{{ $t('shop.display.artikel.info') }} OT-FESTO013290
| {{ $t('shop.all.gewicht') }} | 19 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568162542 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90262020 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Group data sheet: SDE5 (english) festo/gruppendatenblaetter/sde5_en.pdf
Documentation festo/datenblaetter/527457_en.pdf
3D CAD file (volume model) protected/cad/3d/70203/ot-festo013290#83847.stp
Documentation festo/datenblaetter/527457_en.pdf
3D CAD file (volume model) protected/cad/3d/70203/ot-festo013290#83847.stp
