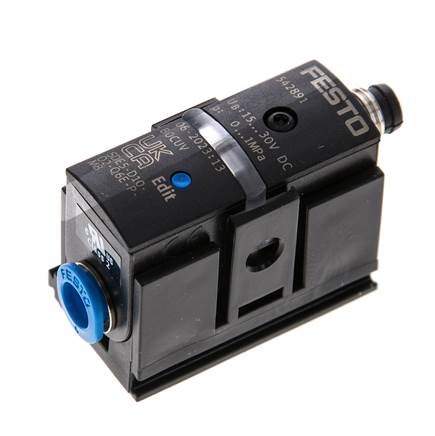

SDE5-D10-O2-Q6E-P-M8 (542891) pressure sensor

OT-FESTO023832

Exemplary representation: SDE5-V1-O-Q6E-P-M8 (527461)   &   SDE5-D10-O-Q6E-P-M8 (527467)   &   SDE5-D10-FP-Q6E-P-M8 (542897)  & ...
99,48€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Permission RCM mark,
c UL us - Recognized (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directive,
acc. to EU-RoHS Directive
KC-mark KC-EMV
Material information RoHs compliant
Measured parameter Relative pressure
Measurement process Piezoresistive pressure sensor
Pressure measurement range starting value [bar] 0
Pressure measurement range end value [bar] 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible
Medium temperature [°C] 0 to 50
ambient temperature [°C] 0 to 50
Repeatability in ± %FS [%FS] 0,3
Temperature coefficient in ± %FS/K [%FS/K] 0,05
Control output PNP
Switch function Threshold value with variable hysteresis
Switching element function NO contact
Max. output current [mA] 100
Short circuit resistance yes
Operating voltage range DC [V] 15 to 30
Reverse polarity protection for all electrical connections
Electrical connection M8x1,
3 pin,
acc. to EN 60947-5-2,
Round shape,
Plug
Fastening type With Accessories
installation position arbitrary
Pneumatic connection QS-6
Product weight [g] 19
Housing material PA,
POM
Switching status indicator LED yellow
Settings range threshold value [%] 0 to 100
Protection category IP40
Corrosion resistant class KBK 2 - moderate corrosion stress
OT-FESTO023832
{{ $t('shop.all.gewicht') }} 19 g / pcs
{{ $t('shop.all.gtin') }} 4052568180843
{{ $t('shop.display.artikel.zollwarennummer') }} 90262020
{{ $t('shop.all.hersteller') }} Festo
{{ $t('shop.all.dokumente') }}
    Group data sheet: SDE5 (english) festo/gruppendatenblaetter/sde5_en.pdf
    Documentation festo/datenblaetter/542891_en.pdf
    3D CAD file (volume model) protected/cad/3d/70203/ot-festo023832#145617.stp
