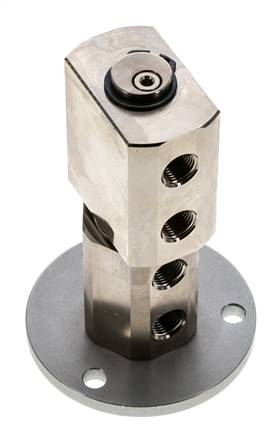

Rotary joint 2-way, G 1/8", Insert for vacuum
{{ $t('shop.all.artikelnummer') }}:
DDF 18-2 VU
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
2 separated inlets and 2 separated outlets
Materials:
Body: nickel-plated brass, seals: PUR, pilot pin, flange screw and safety ring: zinc-plated steel
Temperature range:
-10°C to +85°C
Operating pressure:
0.5 - 12 bar
Media:
Oiled compressed air
Optional:
Usage for vacuum (-1 to 0 bar) -VU, FKM seals (-20°C up to max. +150°C) -V
2 separated inlets and 2 separated outlets
Materials:
Body: nickel-plated brass, seals: PUR, pilot pin, flange screw and safety ring: zinc-plated steel
Temperature range:
-10°C to +85°C
Operating pressure:
0.5 - 12 bar
Media:
Oiled compressed air
Optional:
Usage for vacuum (-1 to 0 bar) -VU, FKM seals (-20°C up to max. +150°C) -V
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Insert for vacuum |
| G | G 1/8" |
| Umax. [1/min] | 300 |
| DN [mm] | 4 |
| flow [l/min] | 440 |
| Temperature range [°C] | -10 to +85 |
| Operating pressure [bar] | -1.0 to 0 |
| A [mm] | 97,5 |
| E [mm] | 11,5 |
| F [mm] | 20 |
| H [mm] | 12,0 |
| M [mm] | 43 |
| N [mm] | 44 |
| O [mm] | 3,5 |
| P [mm] | 15 |
| R [mm] | 40 |
| S [mm] | 25 |
{{ $t('shop.display.artikel.info') }} DDF18-2VU
| {{ $t('shop.all.gewicht') }} | 600 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571246884 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 263) atlas9_seiten/263.pdf
Documentation doku/ddf.pdf
Documentation doku/ddf.pdf
