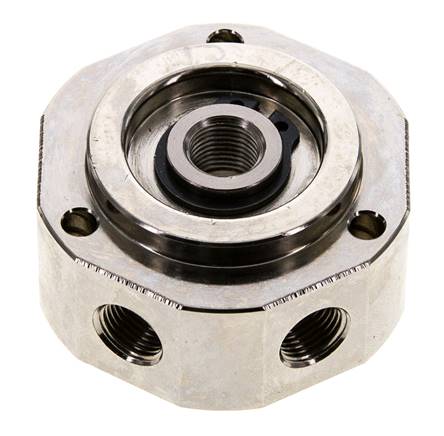

rotary distributor G 3/8"-6x G 1/8", 6-X, standard
{{ $t('shop.all.artikelnummer') }}:
DDFV 38-6
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
2 common inlets, 3 or 6 common outlets
Materials:
Body: nickel-plated brass, seals: PUR (G 3/4" : NBR), pilot pin, flange screw and safety ring: zinc-plated steel
Temperature range:
-10°C to +85°C
Operating pressure:
0.5 - 12 bar
Media:
Oiled compressed air
Optional:
Usage for vacuum (-1 to 0 bar) -VU, FKM seals (-20°C up to max. +150°C) -V
2 common inlets, 3 or 6 common outlets
Materials:
Body: nickel-plated brass, seals: PUR (G 3/4" : NBR), pilot pin, flange screw and safety ring: zinc-plated steel
Temperature range:
-10°C to +85°C
Operating pressure:
0.5 - 12 bar
Media:
Oiled compressed air
Optional:
Usage for vacuum (-1 to 0 bar) -VU, FKM seals (-20°C up to max. +150°C) -V
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | 6-X, standard |
| G (female thread) | G 3/8" |
| G1 (female thread) | G 1/8" |
| G2 (female thread) | 6x G 1/8" |
| Umax. [1/min] | 300 |
| DN [mm] | 8 |
| flow [l/min] | 2000 |
| Temperature range [°C] | -10 to +85 |
| Operating pressure [bar] | 0,5 - 12 |
| C [mm] | 20 |
| E [mm] | 11 |
| H [mm] | 26 |
| I [mm] | 40 |
| L [mm] | 42 |
| M [mm] | 23,7 |
| N [mm] | 4,25 |
| O [mm] | 50 |
{{ $t('shop.display.artikel.info') }} DDFV38-6
| {{ $t('shop.all.gewicht') }} | 290 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571247041 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 262) atlas9_seiten/262.pdf
Documentation doku/ddf.pdf
Documentation doku/ddf.pdf
{{ $t('shop.all.unverbindliche_richtwerte') }}
