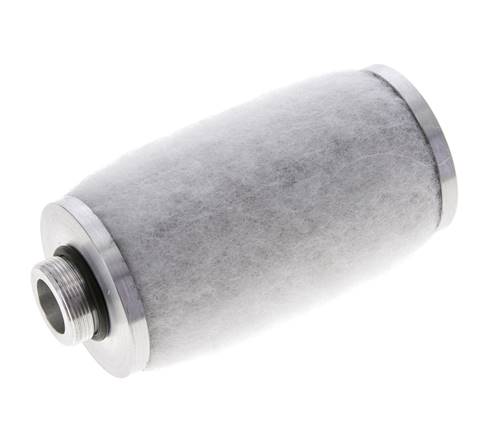

Replacement filter 0,01 µm
{{ $t('shop.all.artikelnummer') }}:
FILTER 3060-X
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.
Materials:
Body: aluminium, container: brass, filter insert: borosilicate microfibre fleece
Temperature range:
0 to +90 °C
Input pressure:
0 to 60 bar
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Condensate draining:
Manually
Media:
Compressed air, neutral gases
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.
Materials:
Body: aluminium, container: brass, filter insert: borosilicate microfibre fleece
Temperature range:
0 to +90 °C
Input pressure:
0 to 60 bar
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Condensate draining:
Manually
Media:
Compressed air, neutral gases
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Replacement filter 0,01 µm |
{{ $t('shop.display.artikel.info') }} FILTER3060-X
| {{ $t('shop.all.gewicht') }} | 75 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571297626 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84219990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 615) atlas9_seiten/615.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Declaration of Conformity konf_erkl/konformitaetserklaerung_df2260_2360_3460_3560_dxf_2260_2360_3460_3560_de_en_la.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Declaration of Conformity konf_erkl/konformitaetserklaerung_df2260_2360_3460_3560_dxf_2260_2360_3460_3560_de_en_la.pdf
