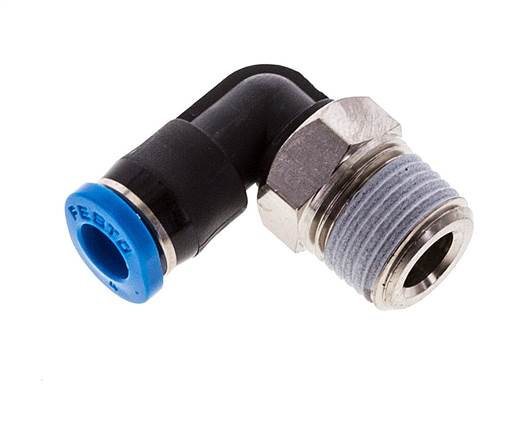

QSML-1/8-4 (153334) push-in L-fitting
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO015380
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| size | Mini |
| Nominal width [mm] | 2,5 |
| Seal type on stud | coating |
| installation position | arbitrary |
| Packing size | 10 |
| Construction set up | Push-pull principle |
| Operating pressure complete temperature range [bar] | -0.95 to 6 |
| Temperature depending operating pressure [bar] | -0.95 to 14 |
| Maritime classification | see Certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Information about operating and control medium | Oiled operation possible |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | -10 to 80 |
| Product weight [g] | 6,0 |
| Pneumatic connection 1 | Male thread R1/8 |
| Pneumatic connection 2 | For hose exterior diameter 4 mm |
| Sleeve colour | blue |
| Material information | RoHs compliant |
| Housing material | PBT |
| Sleeve material | POM |
| Tube seal, hose seal material | NBR |
| Hose clamping segment material | High-alloyed stainless steels |
{{ $t('shop.display.artikel.info') }} OT-FESTO015380
| {{ $t('shop.all.gewicht') }} | 6,0 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568033965 |
| {{ $t('shop.display.artikel.verpackungseinheit') }} | 10 pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Documentation festo/datenblaetter/153334_en.pdf
Group data sheet: QS (english) festo/gruppendatenblaetter/qs_en.pdf
3D CAD file (volume model) protected/cad/3d/70203/ot-festo015380#85937.stp
Group data sheet: QS (english) festo/gruppendatenblaetter/qs_en.pdf
3D CAD file (volume model) protected/cad/3d/70203/ot-festo015380#85937.stp
