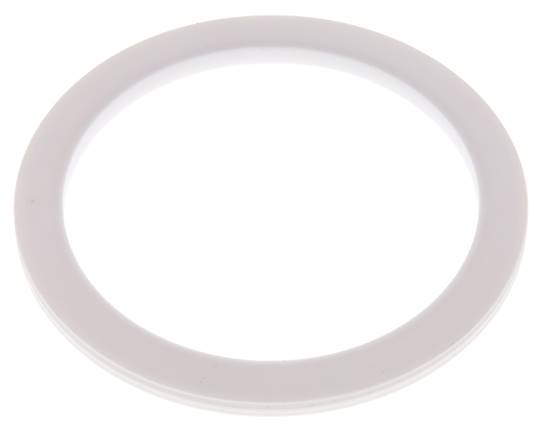

PTFE replacement seal f. Kamlock coupling DN90 (4")
{{ $t('shop.all.artikelnummer') }}:
KLOR 40 P
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
NBR: (-10°C to +80°C) elastic standard material for neutral media such as air, oil and water. Good resistance to mechanical loads, EPDM: (-20°C to +130°C) elastic, resistance to alkaline solutions and acids of average concentration, water, hot water and steam. Not resistance to oils and greases, FKM: (-20°C to +180°C) elastic, elastomer with high temperature and weather resistance. Suitable for many acids, bases, fuels and oils (also synthetic). Not resistant to hot water and steam, CSM (Hypalon): (-40°C to +140°C) elastic and with good chemical resistance,
PTFE*: (-180°C to +200°C) very stiff and very good chemical resistance (install carefully). Resistant against almost all chemicals, even at high temperatures, NBR / PTFE: (-10°C to +80°C) elastic and with very good chemical resistance, FKM / PTFE: (-20°C to +180°C) elastic and with very good chemical resistance,
NBR: (-10°C to +80°C) elastic standard material for neutral media such as air, oil and water. Good resistance to mechanical loads, EPDM: (-20°C to +130°C) elastic, resistance to alkaline solutions and acids of average concentration, water, hot water and steam. Not resistance to oils and greases, FKM: (-20°C to +180°C) elastic, elastomer with high temperature and weather resistance. Suitable for many acids, bases, fuels and oils (also synthetic). Not resistant to hot water and steam, CSM (Hypalon): (-40°C to +140°C) elastic and with good chemical resistance,
PTFE*: (-180°C to +200°C) very stiff and very good chemical resistance (install carefully). Resistant against almost all chemicals, even at high temperatures, NBR / PTFE: (-10°C to +80°C) elastic and with very good chemical resistance, FKM / PTFE: (-20°C to +180°C) elastic and with very good chemical resistance,
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | solid material |
| Material | PTFE* |
| DN [mm] | 90 (4") |
| Outer diameter (approx.) [mm] | 120 |
| Thickness [mm] | 6,4 |
| Temperature range [°C] | -180 to +200 |
{{ $t('shop.display.artikel.info') }} KLOR40P
| {{ $t('shop.all.gewicht') }} | 35 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571162252 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 40169300 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 356) atlas9_seiten/356.pdf
Documentation doku/kld.pdf
Documentation doku/kld.pdf
{{ $t('shop.all.unverbindliche_richtwerte') }}
Accessories
