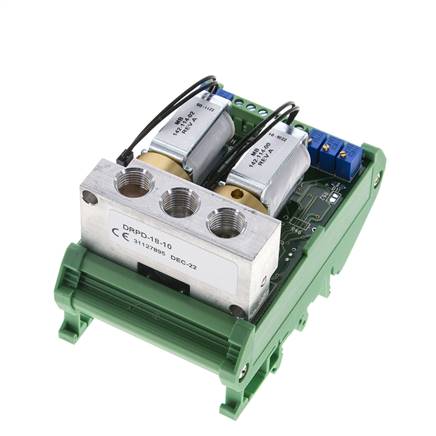

Proportional pressure regulator G 1/8", 0 to 10 bar, 0 – 10 V, for DIN-rails

Version:
The proportional pressure regulator regulates the pressure on the secondary side in proportion to an electric input signal (0 - 10 V or 4 - 20 mA).

Tip:
For larger flow rates, elevated temperatures, aggressive environments and the like, the proportional pressure regulator can also be used as a pilot regulator for a remote pressure regulator (booster) type DRi (for standard applications) or FDRi 03 (for precision control and large venting capacities).

Media:
fine-filtered compressed air (3 µm) & neutral gases, unoiled

Temperature range:
-10 to +60 °C

Power supply:
15 to 24 V (DC)

Power input:
max. 325 mA (DIN rail mounting: max. 250 mA)

Protection class:
IP 65 (DIN rail mounting: IP 00)

Electrical connection:
M 12 plug (A-coded, 4-pole) (DIN rail mounting: screw terminals)

Linearity:
± 0,2 % from end value

Repeatability:
± 0.2 % from end value

Hysteresis:
1 % of the end value

Accuracy:
± 0,5 % of the end value

Output signal (monitor):
0 – 10 V

Input signal	0 - 10 V
Design	for DIN-rails
Thread	G 1/8"
Pressure regulation range [bar]	0 - 10
flow [l/min]	35
Venting [l/min]	35
Inlet pressure (minimum set pressure) [bar]	0 - 13,8

{{ $t('shop.all.gewicht') }}	260 g / pcs
{{ $t('shop.all.gtin') }}	4050571271725
{{ $t('shop.display.artikel.zollwarennummer') }}	90328100
