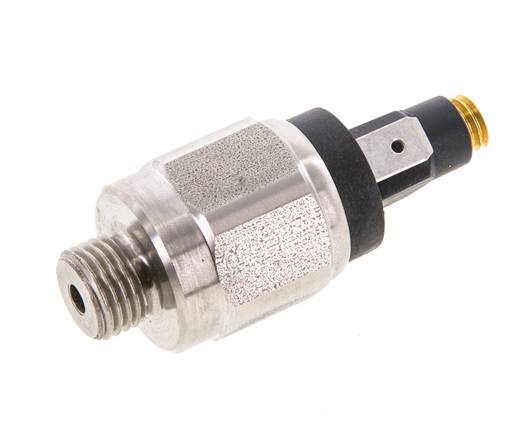

Pressure switch, 1.4305 1 to 10 bar (Closer (NO)), G 1/4"
{{ $t('shop.all.artikelnummer') }}:
DRSS 10 B ES
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: zinc-plated steel or stainless steel 1.4305 (vacuum switch: brass), diaphragms**: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
15 - 20 % (vacuum switch 15 - 25%) of the value that has been set
Protection class:
IP 65 (clamps IP 00)
Electrical connection:
Blade connector 6.3x0.8 (AMP 6.3x0.8)
Media:
Hydraulic oil, oil emulsion, air, (also partially suitable for water)
Body: zinc-plated steel or stainless steel 1.4305 (vacuum switch: brass), diaphragms**: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
15 - 20 % (vacuum switch 15 - 25%) of the value that has been set
Protection class:
IP 65 (clamps IP 00)
Electrical connection:
Blade connector 6.3x0.8 (AMP 6.3x0.8)
Media:
Hydraulic oil, oil emulsion, air, (also partially suitable for water)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Pressure switches |
| Switch type | NO contact |
| Setting range [bar] | 1 - 10 |
| External thread | G 1/4" |
| Material | 1.4305 |
| Safe at overpressure up to [bar] | 20 |
| Switch capacity* | max. 5000 mA (AC/DC) |
| Operating voltage | 0 - 42 V (AC/DC) |
| H [mm] | 49 |
| Safety caps | DRSB SCHUTZKAPPE |
{{ $t('shop.display.artikel.info') }} DRSS10BES
| {{ $t('shop.all.gewicht') }} | 65 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571853198 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 685) atlas9_seiten/685.pdf
Documentation doku/drs.pdf
3D CAD file (volume model) protected/cad/3d/71941/drss10bes389308.stp
Documentation doku/drs.pdf
3D CAD file (volume model) protected/cad/3d/71941/drss10bes389308.stp
