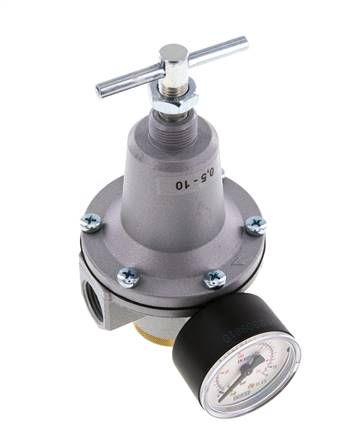

Pressure regulator G 1/2", 0,5 to 10 bar, model series Standard 3
{{ $t('shop.all.artikelnummer') }}:
DR 33
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 5 and 7: aluminium), diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection:
G 1/4"
Switch panel thread:
Series 1 to 3: M 20x1.5
Media:
Compressed air, neutral gases
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Other pressure regulation ranges: 0.1-3 bar -3, 0.2-6 bar -6, 0.5-16 bar -16
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 5 and 7: aluminium), diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection:
G 1/4"
Switch panel thread:
Series 1 to 3: M 20x1.5
Media:
Compressed air, neutral gases
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Other pressure regulation ranges: 0.1-3 bar -3, 0.2-6 bar -6, 0.5-16 bar -16
Advantages:
•Automatic venting in the event of overpressure on the secondary side
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Standard 3 |
| Thread | G 1/2" |
| Pressure regulation range [bar] | 0,5 - 10 |
| flow [l/min] | 5000 |
| input pressure [bar] | max. 25 |
| Pressure gauge display [bar] | 0 - 16 |
| H [mm] | 163 |
| H1 [mm] | 33 |
| L [mm] | 82 |
| Mounting brackets | BW 30 |
{{ $t('shop.display.artikel.info') }} DR33
| {{ $t('shop.all.gewicht') }} | 1,2 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571266011 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 602) atlas9_seiten/602.pdf
Documentation doku/drg.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/dr332980.stp
Documentation doku/drg.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/dr332980.stp
