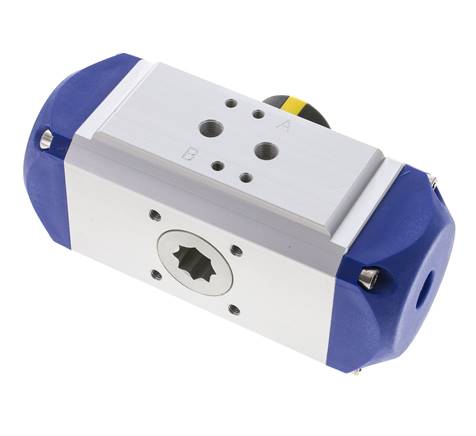

Pneumat. Rotary drive size. 6, double acting, F05
{{ $t('shop.all.artikelnummer') }}:
PDD 006
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodised aluminium, rack and piston: aluminium, cover: acetal resin (from size 12: aluminium), seals: NBR
Temperature range:
-20°C to +80°C
Control pressure:
2,5 to 10 bar (lower pressures on request)
Advantages:
•Mounting flange according to ISO 5211,
•actuator connection with polygon according to DIN 3337,
•connection for solenoid valve according to VDI/VDE 3845 (NAMUR) or using a thread,
•connection for position controller or limit switch box according to VDI/VDE 3845 (NAMUR),
•visual display according to NAMUR,
•construction ATEX-compliant EX II 2GD c
Optional:
FKM seal (-20°C up to max. +120°C, from size 12 to 130: up to max. +150°C) -V
Body: anodised aluminium, rack and piston: aluminium, cover: acetal resin (from size 12: aluminium), seals: NBR
Temperature range:
-20°C to +80°C
Control pressure:
2,5 to 10 bar (lower pressures on request)
Advantages:
•Mounting flange according to ISO 5211,
•actuator connection with polygon according to DIN 3337,
•connection for solenoid valve according to VDI/VDE 3845 (NAMUR) or using a thread,
•connection for position controller or limit switch box according to VDI/VDE 3845 (NAMUR),
•visual display according to NAMUR,
•construction ATEX-compliant EX II 2GD c
Optional:
FKM seal (-20°C up to max. +120°C, from size 12 to 130: up to max. +150°C) -V
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | double acting |
| suitable for assembly flange (ISO 5211) | F05 |
| Wiring diagram for limit switch or position controller | 80 x 30 |
| Air connection (NAMUR) | G 1/8" |
| Size | 6 |
| A [mm] | 50 |
| B | M 6 |
| Square (VK) [mm] | 14 |
| Wear part set | PD 006 REP |
{{ $t('shop.display.artikel.info') }} PDD006
| {{ $t('shop.all.gewicht') }} | 1,2 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571543679 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 543) atlas9_seiten/543.pdf
Documentation doku/pdd_pde.pdf
3D CAD file (volume model) protected/cad/3d/71865/pdd00619898.stp
Documentation doku/pdd_pde.pdf
3D CAD file (volume model) protected/cad/3d/71865/pdd00619898.stp
{{ $t('shop.all.unverbindliche_richtwerte') }}
