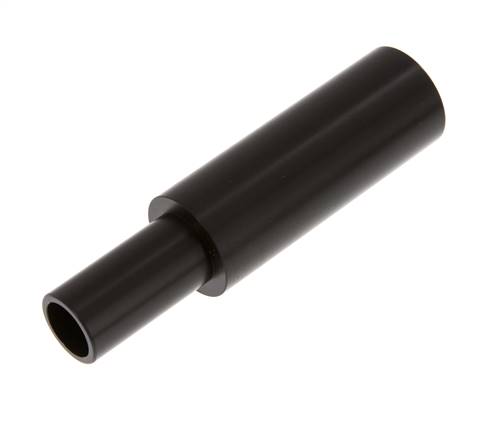

Plug / push in nipple 32mm-22mm, IQS-Large
{{ $t('shop.all.artikelnummer') }}:
IQSH 320220
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: POM (Ø 28: brass / POM, Ø 32: PP), seal: NBR
Temperature range:
-20 to +70 °C
Operating pressure:
-0,95 to 10 bar (70°C: max 7 bar)
Media:
Oiled and unoiled compressed air, neutral gasses, cold water
Advantages:
•Ideal for compressed air distribution in halls, buildings, etc.,
•numerous approvals: FDA, DVGW-W270, KTW, NSF 51 & 61 (not valid for IQSG 1215, IQSG 3422, IQSG 1028 as well as Ø 32)
Body: POM (Ø 28: brass / POM, Ø 32: PP), seal: NBR
Temperature range:
-20 to +70 °C
Operating pressure:
-0,95 to 10 bar (70°C: max 7 bar)
Media:
Oiled and unoiled compressed air, neutral gasses, cold water
Advantages:
•Ideal for compressed air distribution in halls, buildings, etc.,
•numerous approvals: FDA, DVGW-W270, KTW, NSF 51 & 61 (not valid for IQSG 1215, IQSG 3422, IQSG 1028 as well as Ø 32)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| D [mm] | 32 |
| D1 [mm] | 22 |
{{ $t('shop.display.artikel.info') }} IQSH320220
| {{ $t('shop.all.gewicht') }} | 36 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571376048 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 72) atlas9_seiten/72.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
Declaration of Conformity konf_erkl/konformitaetserklaerung_iqs_fda_la.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
Declaration of Conformity konf_erkl/konformitaetserklaerung_iqs_fda_la.pdf
