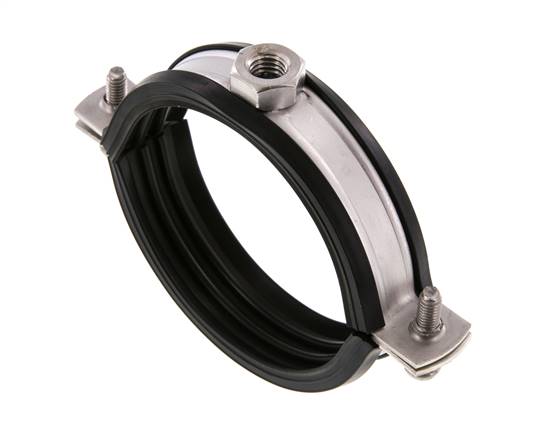

Pipe clamp, 79 to 85mm, 1.4404, with insert
{{ $t('shop.all.artikelnummer') }}:
RS 85 G ES
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Clamp: 1.4404, insert: EPDM
Temperature range:
-50°C to +110°C
Advantages:
•Type with insert: Sound insulation for DIN 4109,
•Pipe clamp is flipped open in front of pipe assembly, making it easy to insert the tube,
•Engaging the tube securely allows it to be pre-fit and adjusted before tightening the clamp.
Clamp: 1.4404, insert: EPDM
Temperature range:
-50°C to +110°C
Advantages:
•Type with insert: Sound insulation for DIN 4109,
•Pipe clamp is flipped open in front of pipe assembly, making it easy to insert the tube,
•Engaging the tube securely allows it to be pre-fit and adjusted before tightening the clamp.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | with insert |
| Diameter clamping range [mm] | 79 - 85 |
| Thread G | M 10 |
| Width B [mm] | 20 |
| permitted load [N] | 1.350 |
{{ $t('shop.display.artikel.info') }} RS85GES
| {{ $t('shop.all.gewicht') }} | 155 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571867669 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269060 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 430) atlas9_seiten/430.pdf
3D CAD file (volume model) protected/cad/3d/72029/rs85ges22931.stp
3D CAD file (volume model) protected/cad/3d/72029/rs85ges22931.stp
{{ $t('shop.all.unverbindliche_richtwerte') }}
