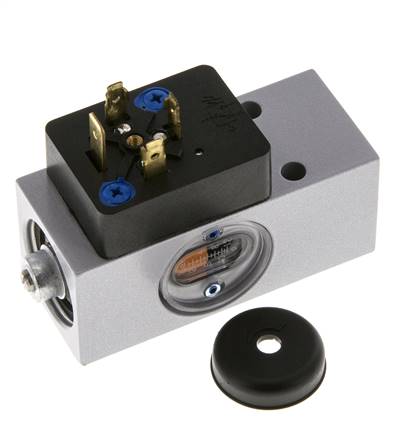

PEV-1/4-SC-OD (161760) pressure switch
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO013075
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Complies to standard | EN 60947-5-1 |
| Permission | CCC |
| CE certificate (see declaration of conformity) | to EU low voltage directive |
| Material information | RoHs compliant |
| Measured parameter | Relative pressure |
| Measurement process | Pneumatic electric pressure converter with adjustment scale |
| Betriebsdruck Mpa [MPa] | 0,1 bis 1,2 |
| Operating pressure [bar] | 1 to 12 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-], Water |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Medium temperature [°C] | -20 to 80 |
| ambient temperature [°C] | -20 to 80 |
| Switching element function | changeover contact |
| Max. switching frequency [Hz] | 3 |
| Max. switch off voltage AC [V] | 250 |
| Max. switch off voltage DC [V] | 125 |
| Max. output current [mA] | 5.000 |
| Minimum load current |
1 mA at 24 V, 10 mA at 10 V, 100 mA at 5V |
| Use category inductive load |
AC-14, DC-13 |
| Use category ohmic load |
AC-12, DC-12 |
| Electrical connection |
Wiring diagram Form A acc. to EN 175301-803, acc. to DIN 43650, plug, Square shape |
| Fastening type | With throughway bores |
| installation position | arbitrary |
| Pneumatic connection | G1/4 |
| Product weight [g] | 144 |
| Housing material | Aluminium die casting |
| Switch contact material | silver |
| Settings range threshold value [bar] | 1 to 12 |
| Protection category | IP65 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
{{ $t('shop.display.artikel.info') }} OT-FESTO013075
| {{ $t('shop.all.gewicht') }} | 144 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568129279 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365080 |
| {{ $t('shop.all.hersteller') }} | Festo |
