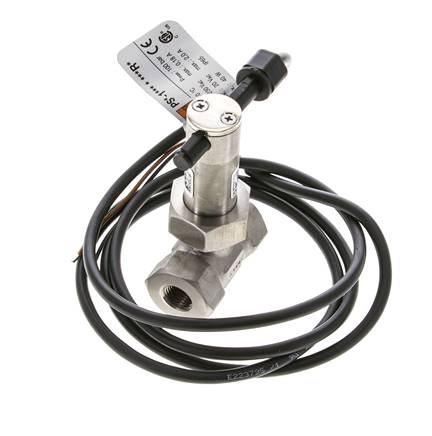

Paddle flow monitor G 1/4", 1.4301

Application:
Paddle flow monitors are used wherever simple, cheap and yet reliable monitoring of flow is required. Depending on the velocity of flow or the flow quantity, the paddle is deflected and moves the permanent magnets over the scale beam to the response range of the reed contacts located external to the flow media.

Materials:
Body: Brass or 1.4301, Impact disc: 1.4301, contact unit: Polyamide, Seals: NBR (type 1.4301: FKM)

Temperature range:
-20°C to +70°C (type 1.4301: -10°C to +110°C)

Installation position:
Impact disc, upright

Direction of flow:
only in one direction

Electrical connection:
1.5 m cable (2-core)

Protection class:
IP 65

Switch type:
NC or NO contactor

Switching capacity:
230 V (AC), 40 VA, max. 2 A / 230 V (DC), 40 W, max. 2 A

Media:
Water, aqueous fluids, oils, coolants

Version	Complete flow monitor
Material	1.4301
Thread	G 1/4"
Increasing flow approx. switching range (water) [l/min]	2,3 - 4,7
Decreasing flow approx. switching range (water) [l/min]	1,6 - 4,6
PN [bar]	250
Media temperature [°C]	-10 to +110

{{ $t('shop.all.gewicht') }}	380 g / pcs
{{ $t('shop.all.gtin') }}	4050571681647
{{ $t('shop.display.artikel.zollwarennummer') }}	90261089
