Paddle flow monitor G 1/2", Brass

SWPS 12 MS

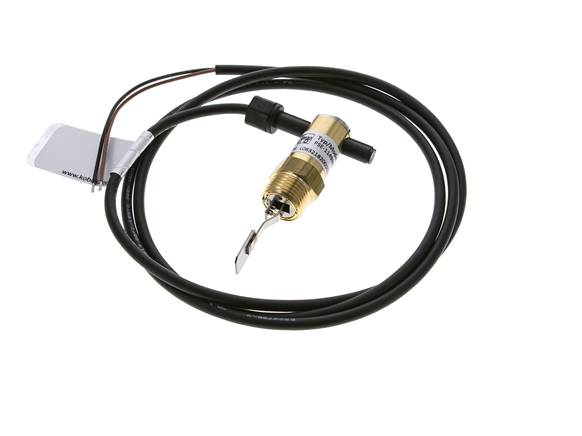

Exemplary representation: Baffle plate flow switch for screwing in
152,17€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Paddle flow monitors are used wherever simple, cheap and yet reliable monitoring of flow is required. Depending on the velocity of flow or the flow quantity, the paddle is deflected and moves the permanent magnets over the scale beam to the response range of the reed contacts located external to the flow media.

Materials:
Body: Brass or 1.4301, Impact disc: 1.4301, contact unit: Polyamide, Seals: NBR (type 1.4301: FKM)

Temperature range:
-20°C to +70°C (type 1.4301: -10°C to +110°C)

Installation position:
Impact disc, upright

Direction of flow:
only in one direction

Electrical connection:
1.5 m cable (2-core)

Protection class:
IP 65

Switch type:
NC or NO contactor

Switching capacity:
230 V (AC), 40 VA, max. 2 A / 230 V (DC), 40 W, max. 2 A

Media:
Water, aqueous fluids, oils, coolants

Switching range (increasing flow) depending on the tube diameter (for water):
DN 50: 68 - 90 l/min, DN 80: 183 - 250 l/min, DN 100: 320 - 400 l/min, DN 150: 700 - 917 l/min

Switching range (decreasing flow) depending on the tube diameter (for water):
DN 50: 61 - 83 l/min, DN 80: 170 - 233 l/min, DN 100: 300 - 383 l/min, DN 150: 667 - 900 l/min
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Complete flow monitor
Material Brass
External thread G 1/2"
PN [bar] 100
SWPS12MS
{{ $t('shop.all.gewicht') }} 165 g / pcs
{{ $t('shop.all.gtin') }} 4050571681715
{{ $t('shop.display.artikel.zollwarennummer') }} 90261089
