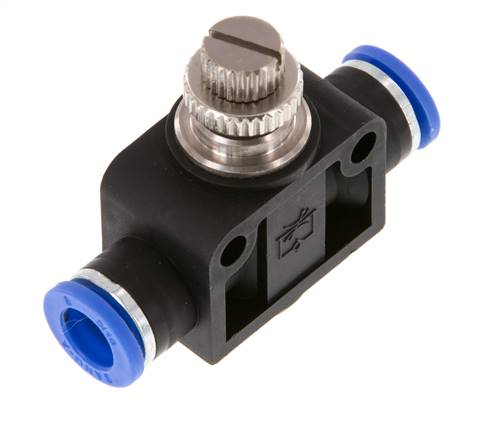

One-way flow control 8mm push in fitting
{{ $t('shop.all.artikelnummer') }}:
IQSDRV 80
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Functional principle:
One-directional flow control valves restrict the flow in one direction, while the flow in the other direction is unrestricted. Throttle valves, on the other hand, restrict the flow in both directions according to the setting of the throttle screw. Standard form are the throttle check valves "exhaust regulating". If these are screwed into a cylinder, for example, they enable smooth running without slip-stick effect. Throttle check valves are used in the special form "supply air regulating" for cylinders with a small volume (small diameter/small stroke).
Media:
Compressed air, neutral gases
Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Advantages:
•Compact design,
•Can be easily adjusted without tools
One-directional flow control valves restrict the flow in one direction, while the flow in the other direction is unrestricted. Throttle valves, on the other hand, restrict the flow in both directions according to the setting of the throttle screw. Standard form are the throttle check valves "exhaust regulating". If these are screwed into a cylinder, for example, they enable smooth running without slip-stick effect. Throttle check valves are used in the special form "supply air regulating" for cylinders with a small volume (small diameter/small stroke).
Media:
Compressed air, neutral gases
Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Advantages:
•Compact design,
•Can be easily adjusted without tools
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| D [mm] | 8 |
| Series | IQS-Standard |
| Operating pressure [bar] | -0.95 to 20 |
| Temperature range [°C] | -20 to +80 |
{{ $t('shop.display.artikel.info') }} IQSDRV80
| {{ $t('shop.all.gewicht') }} | 41 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571372200 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 60) atlas9_seiten/60.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqsdrv8010554.stp
3D CAD file (volume model) protected/cad/3d/70709/iqsdrv8010554.stp
{{ $t('shop.all.unverbindliche_richtwerte') }}
