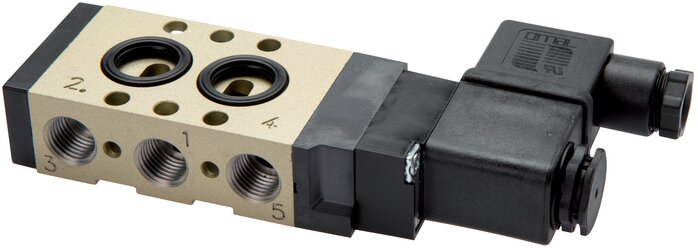

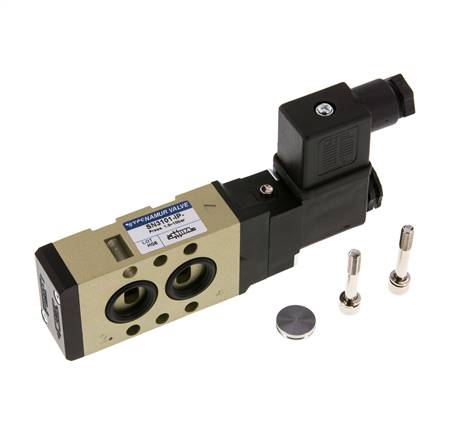

NAMUR solenoid valve, 5/2-way Spring return, G 1/4", 12 V DC
{{ $t('shop.all.artikelnummer') }}:
SN3101 IPSC-D2 *
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 30 ms
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 30 ms
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 12 V DC |

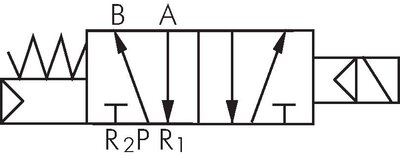

| Switching | 5/2-way |
| function | spring return |
| Thread (1x) | G 1/4" |
| Thread exhaust air (2x) | G 1/4" |
| Operating pressure [bar] | 1,5 - 10 |
| flow [l/min] | 1000 |
| Power consumption (DC) [W] | 2,1 |
| Spare solenoid coil | MAG M 12V= |
{{ $t('shop.display.artikel.info') }} SN3101IPSC-D2
| {{ $t('shop.all.gewicht') }} | 280 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571632656 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | YPC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 545) atlas9_seiten/545.pdf
Documentation doku/magnetventile_5_2_5_3.pdf
3D CAD file (volume model) protected/cad/3d/72028/sn3101ipsc-d2273434.stp
Documentation doku/magnetventile_5_2_5_3.pdf
3D CAD file (volume model) protected/cad/3d/72028/sn3101ipsc-d2273434.stp
