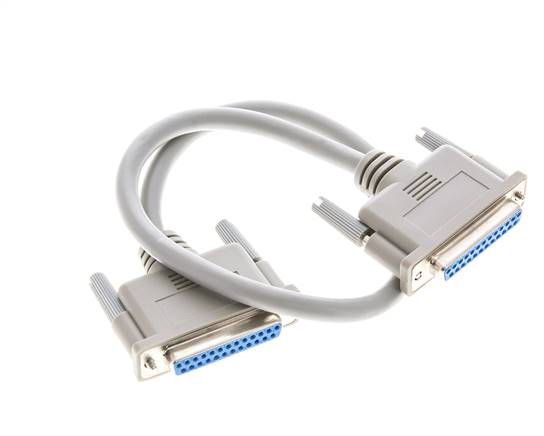

Multipol-Verbindungskabel 0,5 mtr. SUB-D
{{ $t('shop.all.artikelnummer') }}:
MCS25-DC-05
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
2.5 W /station
Protection class:
IP 40
Version:
with LED and protection circuit
Advantages:
•Quick and easy connection,
•Compact design,
•Universally applicable due to modular system,
•LED switching status display and protective circuit,
•Up to 22 valves can be controlled via a multi-pin connection cable,
•Easy valve replacement
Description:
The valve terminals have a modular construction. Please order: 1. Terminal box corresponding to the number of magnets to be controlled. 2. Manifold corresponding to the number of magnets to be controlled. 3. Valves (5/2 or 5/3-way valves) of the relevant model series. 4. For each pulse valve or 5/3-way valve, one connection plate for the second magnet.
Assembly:
1. Slide terminal box onto manifold using dovetail guide. 2. Mount valves (valves with two coils are connected to the second coil via the MSF...-JC) and tighten screw. 3. In case of possible vibrations, please us the additional mounting plates type MCS...-CP, in order to tightly connect the coils with the terminal box.
Function:
Up to 22 stations are controlled via a multi-pin connection cable. Each station is provided with a LED status indicator and a protection circuit. The terminal can always be equipped with 5/2- and 5/3-way valves with a DIN-plug of model series SF2000 where monostable 5/2-way valves are used for single stations, while 5/3-way valves are used for two stations.
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
2.5 W /station
Protection class:
IP 40
Version:
with LED and protection circuit
Advantages:
•Quick and easy connection,
•Compact design,
•Universally applicable due to modular system,
•LED switching status display and protective circuit,
•Up to 22 valves can be controlled via a multi-pin connection cable,
•Easy valve replacement
Description:
The valve terminals have a modular construction. Please order: 1. Terminal box corresponding to the number of magnets to be controlled. 2. Manifold corresponding to the number of magnets to be controlled. 3. Valves (5/2 or 5/3-way valves) of the relevant model series. 4. For each pulse valve or 5/3-way valve, one connection plate for the second magnet.
Assembly:
1. Slide terminal box onto manifold using dovetail guide. 2. Mount valves (valves with two coils are connected to the second coil via the MSF...-JC) and tighten screw. 3. In case of possible vibrations, please us the additional mounting plates type MCS...-CP, in order to tightly connect the coils with the terminal box.
Function:
Up to 22 stations are controlled via a multi-pin connection cable. Each station is provided with a LED status indicator and a protection circuit. The terminal can always be equipped with 5/2- and 5/3-way valves with a DIN-plug of model series SF2000 where monostable 5/2-way valves are used for single stations, while 5/3-way valves are used for two stations.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Description | 0.5 mtr. Multi-pin connecting cable both sides D-sub 25-pole for MCS 221 |
{{ $t('shop.display.artikel.info') }} MCS25-DC-05
| {{ $t('shop.all.gewicht') }} | 130 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571483104 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | YPC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 773) atlas9_seiten/773.pdf
Documentation doku/magnetventile_5_2_5_3.pdf
Documentation doku/magnetventile_5_2_5_3.pdf
