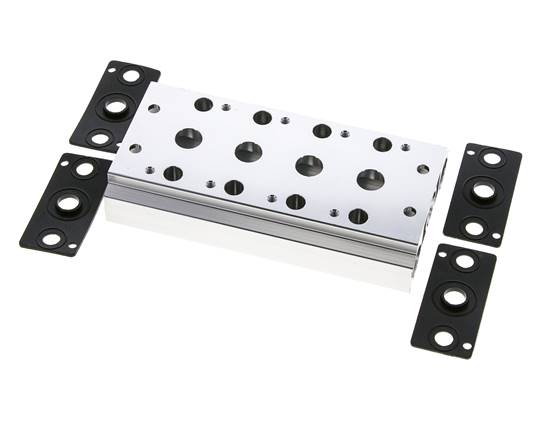

Multiple manifold (4-fold) for 5/2-way & 5/3-way valves
{{ $t('shop.all.artikelnummer') }}:
V 52-4
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: aluminium, seals: NBR
Scope of delivery:
Basic body with screws and seals (please order valves separately)
Body: aluminium, seals: NBR
Scope of delivery:
Basic body with screws and seals (please order valves separately)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | for 5/2-way & 5/3-way valves |
| Version | for model series RV20 |
| Number of stations [PCE] | 4 |
| Description | Multiple manifold |
| matching dummy plate* | V 52-BP |
| *Spare seal including screws | V 52-REP |
| A [mm] | 23,0 |
| B [mm] | 23 |
| C [mm] | 6 |
| D [mm] | 59,0 |
| E [mm] | 38,0 |
| F [mm] | 35,0 |
| G1 (2x) | G 1/4" |
| G2 (exhaust air) | 4x G 1/4" |
| H [mm] | 0 |
| J [mm] | 4,5 |
| K [mm] | 23,5 |
| L [mm] | 17 |
| M [mm] | 43,0 |
| N [mm] | 9,00 |
| O [mm] | 5,4 |
| P [mm] | 21 |
{{ $t('shop.display.artikel.info') }} V52-4
| {{ $t('shop.all.gewicht') }} | 175 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571715953 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84819000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 720) atlas9_seiten/720.pdf
3D CAD file (volume model) protected/cad/3d/73566/v52-4313714.stp
3D CAD file (volume model) protected/cad/3d/73566/v52-4313714.stp
