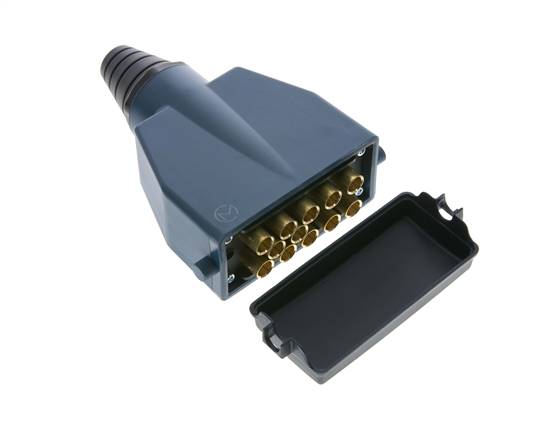

Multiple coupling 12x 4mm Schl.,Plug
{{ $t('shop.all.artikelnummer') }}:
MFK 412 ST
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For a quick and high safety standard coupling of several pneumatic hoses and multiple hoses.
Materials:
Body and plug plate: Technopolymer, seal: NBR, push-in connector: brass
Temperature range:
-20 to +70 °C
Note:
Plugs and sleeves can only be coupled together if they are the same size and same number of lines.
For a quick and high safety standard coupling of several pneumatic hoses and multiple hoses.
Materials:
Body and plug plate: Technopolymer, seal: NBR, push-in connector: brass
Temperature range:
-20 to +70 °C
Note:
Plugs and sleeves can only be coupled together if they are the same size and same number of lines.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Plug |
| Hose diameter (outer) [mm] | 4 |
| Number of lines | 12 |
| shut-off on both sides | no |
| size | 1 |
| B [mm] | 116 |
| A [mm] | 103 |
| Operating pressure [bar] | -0.99 to 15 |
| C [mm] | 86 |
| Replacement dust protection cover for plugs | MFK STAUB 1 |
{{ $t('shop.display.artikel.info') }} MFK412ST
| {{ $t('shop.all.gewicht') }} | 320 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571489526 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 322) atlas9_seiten/322.pdf
Documentation doku/mfk.pdf
3D CAD file (volume model) protected/cad/3d/72420/mfk412st#48419.stp
Documentation doku/mfk.pdf
3D CAD file (volume model) protected/cad/3d/72420/mfk412st#48419.stp
