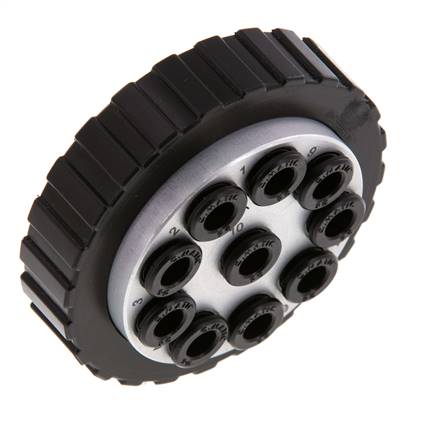

Multiple coupling 10x 6mm Schl.,Plug, round
{{ $t('shop.all.artikelnummer') }}:
MFKR 610 ST
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For a quick and high safety coupling of several pneumatic hoses and multiple hoses. Cost efficient and compact design. Flat installation dimensions for bulkhead assembly.
Materials:
Body: aluminium, union nut and locking nut: POM, seals: NBR
Temperature range:
-20 to +70 °C
Operating pressure:
-0,99 to 12 bar
Note:
Plugs and sleeves can only be coupled together if they have the same number of lines.
Advantages:
•flat design,
•Sleeve equipped with bulkhead thread M 50x1.5 (max. bulkhead thickness: 5 mm)
For a quick and high safety coupling of several pneumatic hoses and multiple hoses. Cost efficient and compact design. Flat installation dimensions for bulkhead assembly.
Materials:
Body: aluminium, union nut and locking nut: POM, seals: NBR
Temperature range:
-20 to +70 °C
Operating pressure:
-0,99 to 12 bar
Note:
Plugs and sleeves can only be coupled together if they have the same number of lines.
Advantages:
•flat design,
•Sleeve equipped with bulkhead thread M 50x1.5 (max. bulkhead thickness: 5 mm)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Plug |
| Hose diameter (outer) [mm] | 6 |
| Number of lines | 10 |
{{ $t('shop.display.artikel.info') }} MFKR610ST
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571490072 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 322) atlas9_seiten/322.pdf
Documentation doku/mfk.pdf
3D CAD file (volume model) protected/cad/3d/72420/mfkr610st#260658.stp
Documentation doku/mfk.pdf
3D CAD file (volume model) protected/cad/3d/72420/mfkr610st#260658.stp
