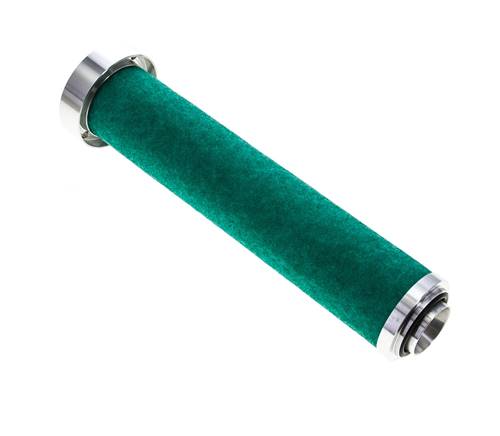

MULTIFIX Replacement filter 0,01 µm , Multifix 5

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: die-cast zinc (model series 5: aluminium) or polycarbonate

Temperature range:
-10 to +60 °C

Media:
Compressed air, neutral gases

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)

Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.

Note about semi-automatic condensate drain:
As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.

Application:
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.

Dust removal:
> 0,01 µm (99,999 %)

Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)

Input pressure:
1.5 - 16 bar, with metal tank max. 20 bar** (series 0: when using coupling packet max. 12 bar)

Optional:
Model series 0 (only type FX 018), 1 and 2: Protective cage -S, model series 2 and 4: Metal bowl with inspection tube -M, model series 1, 2 and 4: automatic drain -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC

Version	Replacement filter 0,01 µm
Model series	Multifix 5

{{ $t('shop.all.gewicht') }}	210 g / pcs
{{ $t('shop.all.gtin') }}	4050571787837
{{ $t('shop.display.artikel.zollwarennummer') }}	84213925
