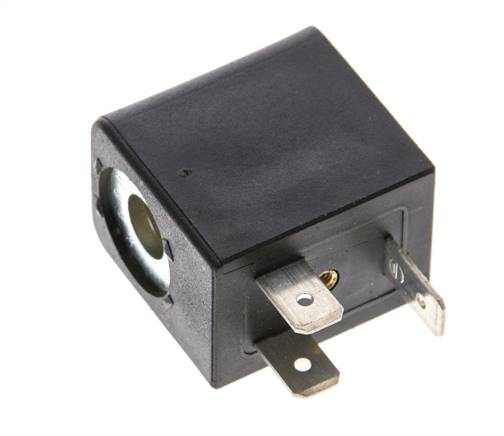

MULTIFIX Replacement coil for solenoid valve, , 230 V AC
{{ $t('shop.all.artikelnummer') }}:
M CL 230V
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
2 to 10 bar
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Power consumption:
3 W / 5 VA (series 4: 2.5 W / 3 VA)
Protection class:
IP 65 (plug size 1, series 4: plug size 0C)
Scope of delivery:
Valve including silencer in exhaust thread
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
2 to 10 bar
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Power consumption:
3 W / 5 VA (series 4: 2.5 W / 3 VA)
Protection class:
IP 65 (plug size 1, series 4: plug size 0C)
Scope of delivery:
Valve including silencer in exhaust thread
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Replacement coil for solenoid valve |
| Model series | Multifix 0, 1, 2 & 5 |
| Electrical controls | 230 V AC |
{{ $t('shop.display.artikel.info') }} MCL230V
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571482855 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 595) atlas9_seiten/595.pdf
Documentation: Maintenance equipment (Multifix) doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Documentation: Maintenance equipment (Multifix) doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
