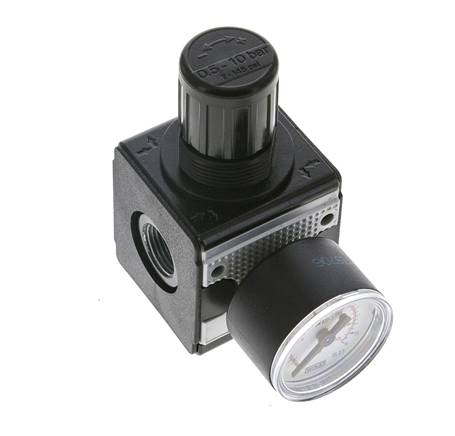

MULTIFIX pressure regulator, rowassy. G 3/8", 0,5 to 10bar, Multifix 1

Version:
Self-relieving pressure regulator

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR

Temperature range:
-10 to +60 °C

Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")

Media:
Oiled and unoiled compressed air, neutral gasses

Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it

Input pressure:
max. 16 bar (model series 0: when using a coupling kit max. 12 bar)

Scope of delivery:
Pressure regulator including pressure gauge (model series 0 & 1: 40 mm (G 1/8"), model series 2: 50 mm (G 1/4"))

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)

Optional:
Lockable using a cylinder lock -K, can be locked using a cylinder lock with E 11-closure** -KE11

Advantages:
•By combining several adjustable nozzles into a block, several compressed air circuits can be supplied with independently regulated pressure from one pressure supply. The compressed air outlet is placed opposite the pressure gauge (model series 0 & 1: G 1/4", model series 2: G 1/2")

Model series	Multifix 1
Thread input	G 3/8"
Thread outlet	G 1/4"
Pressure regulation range [bar]	0,5 - 10
Pressure gauge display [bar]	0 - 16
Flow*** [l/min]	2250
Mounting brackets	W 1
Mounting brackets with panel union nut	MW 1
Coupling kit	KP 1
H [mm]	94
H1 [mm]	67
L [mm]	48
Switch panel thread	M 30x1,5

{{ $t('shop.all.gewicht') }}	360 g / pcs
{{ $t('shop.all.gtin') }}	4050571916114
{{ $t('shop.display.artikel.zollwarennummer') }}	84811099
