MULTIFIX pressure regulator, G 1/4", 0,1 to 3bar, model series 0

R 014-3

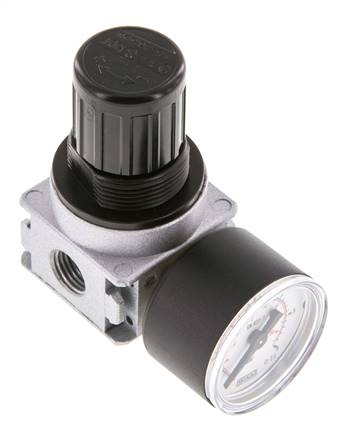

Exemplary representation: Pressure regulator - Multifix series 0 Schematic symbol
47,02€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Self-relieving pressure regulator

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR

Temperature range:
-10 to +60 °C

Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")

Media:
Oiled and unoiled compressed air, neutral gasses

Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it


Input pressure:
max. 16 bar (for use with coupling kit max. 12 bar)

Switch panel thread:
M 30x1,5

Scope of delivery:
Pressure regulator including 40 mm pressure gauge

Flow:
1450 l/min ***

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)

Optional:
Lockable using a cylinder lock -K, can be locked using a cylinder lock with E 11-closure** -KE11
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version pressure regulator
Thread G 1/4"
Pressure regulation range [bar] 0,1 - 3
Pressure gauge display [bar] 0 - 4
Mounting brackets W 0
Mounting brackets with panel union nut MW 1
Coupling kit KP 0
R014-3
{{ $t('shop.all.gewicht') }} 310 g / pcs
{{ $t('shop.all.gtin') }} 4050571563622
{{ $t('shop.display.artikel.zollwarennummer') }} 84811099
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 578) atlas9_seiten/578.pdf
    Documentation doku/wartungsgeraete_multifix.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
    3D CAD file (volume model) protected/cad/3d/70381/r014-329933.stp


  • {{ $t('shop.display.datenblatt.titel') }} (Print view)


{{ $t('shop.all.unverbindliche_richtwerte') }}
