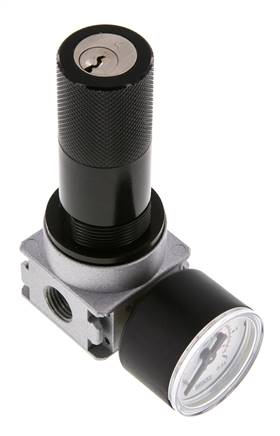

MULTIFIX pressure regulator, G 1/4", 0,1 to 3bar, model series 0

Version:
Self-relieving pressure regulator

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR

Temperature range:
-10 to +60 °C

Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")

Media:
Oiled and unoiled compressed air, neutral gasses

Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it

Input pressure:
max. 16 bar (for use with coupling kit max. 12 bar)

Switch panel thread:
M 30x1,5

Scope of delivery:
Pressure regulator including 40 mm pressure gauge

Flow:
600 l/min ***

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)

Optional:
Lockable using a cylinder lock -K, can be locked using a cylinder lock with E 11-closure** -KE11

Version	Pressure regulator, lockable
Thread	G 1/4"
Pressure regulation range [bar]	0,1 - 3
Pressure gauge display [bar]	0 - 4
Mounting brackets	W 0
Mounting brackets with panel union nut	MW 1
Coupling kit	KP 0

{{ $t('shop.all.gewicht') }}	420 g / pcs
{{ $t('shop.all.gtin') }}	4050571563356
{{ $t('shop.display.artikel.zollwarennummer') }}	84811099
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
