Item description
Version:

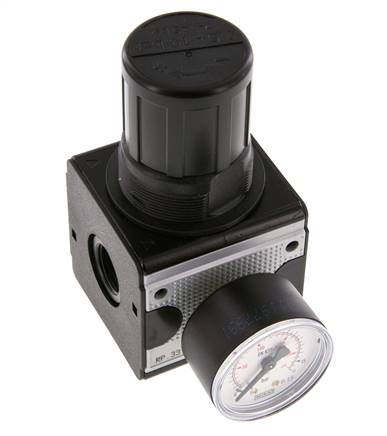

Self-relieving pressure regulator

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR

Temperature range:
-10 to +60 °C

Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")

Media:
Oiled and unoiled compressed air, neutral gasses

Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it


Input pressure:
max. 16 bar

Switch panel thread:
M 50x1,5

Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge

Flow:
8700 l/min ****

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)

Optional:
can be locked using a cylinder lock -K, can be locked using a cylinder lock with E 11 closure** -KE11, Safety version: can be locked with upstream lockable ball valve and start-up valve -Si
Properties
Ver­sion Pre­ci­sion pres­sure reg­u­la­tor***
Thread G 1/2"
Pres­sure reg­u­la­tion range [bar] 0,5 - 10
Pres­sure gauge dis­play [bar] 0 - 16
Mount­ing brack­ets W 2
Mount­ing brack­ets with panel union nut MW 2
Cou­pling kit KP 2
Further information on RP12
Weight 900 g / pcs
GTIN 4050571604080
Customs duty number 84811099
RoHS compliant Yes
Documents
*Standard series, please prefer for use, since the pressure control range is universally usable, **Volkswagen lock (is supplied without a key), ***low own air consumption (2.6 l/min at 6 bar outlet pressure) but better hysteresis - almost independent of the primary pressure, control accuracy ± 25 mbar, ****measured at P1 = 10 bar, P2 = 6.3 bar and 1 bar pressure drop


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
