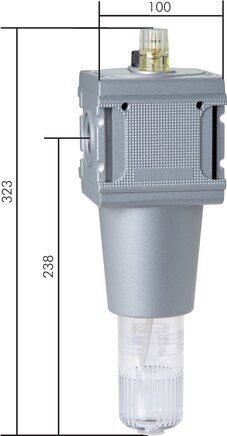

MULTIFIX Oil-fog lubricator, G 3/4", model series 5
{{ $t('shop.all.artikelnummer') }}:
OL 345
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, oil tank: polycarbonate
Temperature range:
-10 to +60 °C
Media:
Compressed air, neutral gases
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 - 16 bar (with metal bowl max. 20 bar*)
Oil metering at 1000 l/min:
approx. 1 - 2 drops/min
Oil supply:
450 cm³
Lubricator reaction limit (at 6 bar):
800 l/min
Flow:
800 to 18000 l/min
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not electrical level monitoring)
Optional:
Version with protective cage -S, Version with metal bowl* and inspection tube -M, electrical level monitoring -N
Advantages:
•can be filled with oil while under pressure
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, oil tank: polycarbonate
Temperature range:
-10 to +60 °C
Media:
Compressed air, neutral gases
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 - 16 bar (with metal bowl max. 20 bar*)
Oil metering at 1000 l/min:
approx. 1 - 2 drops/min
Oil supply:
450 cm³
Lubricator reaction limit (at 6 bar):
800 l/min
Flow:
800 to 18000 l/min
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not electrical level monitoring)
Optional:
Version with protective cage -S, Version with metal bowl* and inspection tube -M, electrical level monitoring -N
Advantages:
•can be filled with oil while under pressure
{{ $t('shop.display.artikel.eigenschaften_headline') }}
{{ $t('shop.display.artikel.info') }} OL345
| {{ $t('shop.all.gewicht') }} | 1,8 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571534899 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84248970 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 589) atlas9_seiten/589.pdf
Documentation doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Documentation doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
