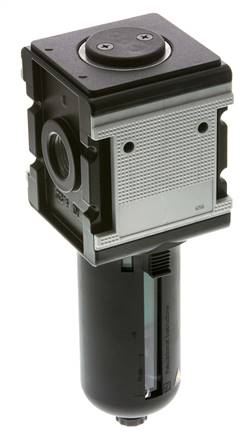

MULTIFIX Microfilter (sub-microfilter) G 3/4", Multifix 4

Item number:

FX 344

€283.29 incl. VAT
pcs
Item description
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: die-cast zinc (model series 5: aluminium) or polycarbonate

Temperature range:
-10 to +60 °C

Media:
Compressed air, neutral gases

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)

Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.

Note about semi-automatic condensate drain:
As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.

Application:
Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.

Dust removal:
> 0,01 µm (99,999 %)

Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)

Input pressure:
1.5 - 16 bar, with metal tank max. 20 bar** (series 0: when using coupling packet max. 12 bar)

Optional:
Model series 0 (only type FX 018), 1 and 2: Protective cage -S, model series 2 and 4: Metal bowl with inspection tube -M, model series 1, 2 and 4: automatic drain -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC
Properties
Version Microfilter (sub-microfilter)
Model series Multifix 4
Thread G 3/4"
Optimal flow* [l/min] 1500
Container design Plastic container with protective cage
Condensate drain Semi-automatic
Max. condensate amount [cm³] 87
H [mm] 248
H1 [mm] 190
L [mm] 85
Mounting brackets W 4
Coupling kit KP 4
Replacement filter X 40/100
Accessories differential pressure indicators 0 - 0.35 bar (especially economical) DDA B
Accessories differential pressure gauges 0 - 0.5 bar DDA M
input pressure [bar] 1,5 - 16
Further information on FX344
Weight 1,2 kg / pcs
GTIN 4050571852795
Customs duty number 84213925
RoHS compliant Yes
Documents
*at inlet pressure 6 bar and 0.1 bar pressure loss, **Metal tank with automatic draining AM/AMNC: max. 16 bar


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
