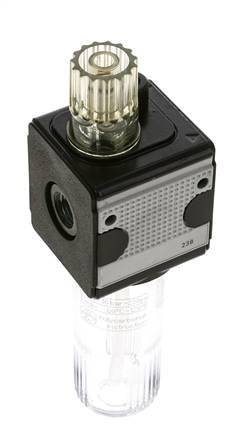

MULTIFIX Micro oil-fog lubricator, G 1/4", Multifix 1, Plastic container

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, oil tank: polycarbonate

Temperature range:
-10 to +60 °C

Media:
Compressed air, neutral gases

Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.

Input pressure:
max. 16 bar (with metal bowl max. 20 bar*)

Oil metering at 1000 l/min:
approx. 10 - 20 drops/min

Lubricator reaction limit (at 6 bar):
Model series 1: 26 l/min, model series 2: 60 l/min

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Optional:
Version with protective cage -S, Version with metal bowl* and inspection tube -M

Advantages:
•very fine oil mist

Version	Micro oil-fog lubricator
Model series	Multifix 1
Thread	G 1/4"
Container design	Plastic container
flow [l/min]	26 - 1500
Oil supply [cm³]	50
Mounting brackets	W 1
Coupling kit	KP 1
input pressure [bar]	0 - 16
H [mm]	167
H1 [mm]	109
L [mm]	48

{{ $t('shop.all.gewicht') }}	330 g / pcs
{{ $t('shop.all.gtin') }}	4050571495831
{{ $t('shop.display.artikel.zollwarennummer') }}	84248970
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
