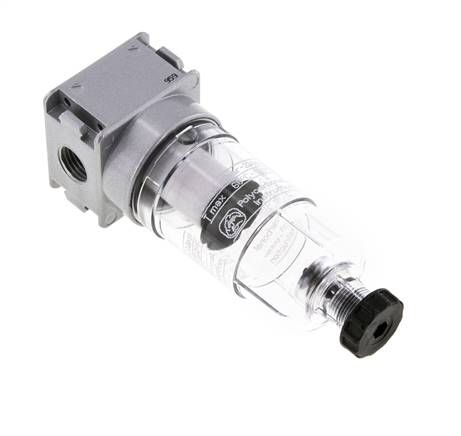

MULTIFIX filter, G 1/4", model series. 0, Plastic container

Version:
Filtering using the centrifugal principal and sintered filter

Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: polycarbonate

Temperature range:
-10 to +60 °C

Pore width in the filter:
5 µm (model series 5: 40 µm)

Condensate draining:
semi-automatic**

Media:
Compressed air, neutral gases

Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.

Input pressure:
1.5 - 16 bar (when a coupling kit is used, max. 12 bar, with metal bowl max. 20 bar*)

Max. condensate amount:
16 cm³

Flow:
1000 l/min

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Optional:
Version with metal bowl* without sighting tube -MB, automatic discharge -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC

Thread	G 1/4"
Container design	Plastic container
Condensate drain	Semi-automatic
Mounting brackets	W 0
Coupling kit	KP 0
Replacement filter 5 µm	FILTER 1
input pressure [bar]	1,5 - 16

{{ $t('shop.all.gewicht') }}	240 g / pcs
{{ $t('shop.all.gtin') }}	4050571291198
{{ $t('shop.display.artikel.zollwarennummer') }}	84213925
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
