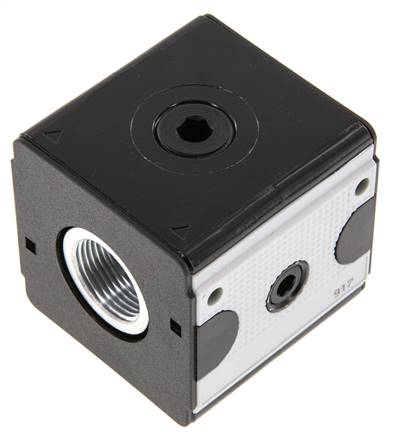

MULTIFIX distributor block, G 3/4", Multifix 2
{{ $t('shop.all.artikelnummer') }}:
VB CL 34
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 to 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 to 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Multifix 2 |
| Design | Standard |
| Thread P/A (inlet/outlet) | G 3/4" |
| Thread at outflow B (top) | G 1/2" |
| Thread at outflow C (top) | G 1/2" |
| Thread at outflow D (front/rear) | G 1/4" |
| Flow P-A [l/min] | 11000 |
| Flow P-B [l/min] | 8750 |
| Flow P-C [l/min] | 8750 |
| Flow P-D [l/min] | 1300 |
| L1 / L2 [mm] | 69 |
| Mounting brackets | W 2 |
| Coupling kit for coupling with standard design | KP 2 |
| Coupling kit for coupling with narrow design | KPS 2 |
{{ $t('shop.display.artikel.info') }} VBCL34
| {{ $t('shop.all.gewicht') }} | 700 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571718947 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 596) atlas9_seiten/596.pdf
Documentation doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/vbcl34#15732.stp
Documentation doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/vbcl34#15732.stp
