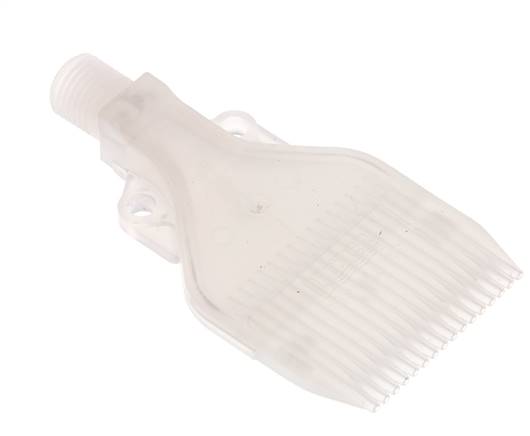

Multi-channel fan nozzle, 47mm, G 1/4", Polypropylene (FDA-conformant)
{{ $t('shop.all.artikelnummer') }}:
FACH F PP
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Operating pressure:
max. 6 bar
Suitable:
Multi-channel nozzles are particularly quiet and economical. They are particularly suitable for large area blowing-off of water or dust as well as blowing out and further transport of stampings, plastic and elastic mouldings.
max. 6 bar
Suitable:
Multi-channel nozzles are particularly quiet and economical. They are particularly suitable for large area blowing-off of water or dust as well as blowing out and further transport of stampings, plastic and elastic mouldings.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Polypropylene (FDA-conformant) |
| Width [mm] | 47 |
| Thread external | G 1/4" |
| Adapter for screwing into blowguns with nozzle thread M 12x1.25 | RN M12X1,25-14 MS |
| Air consumption at 4 bar [l/min] | 416 |
| Temperature range [°C] | max. +60 |
{{ $t('shop.display.artikel.info') }} FACHFPP
| {{ $t('shop.all.gewicht') }} | 14 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571292805 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39269097 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 932) atlas9_seiten/932.pdf
Documentation: Blow-out guns doku/blp.pdf
3D CAD file (volume model) protected/cad/3d/70458/fachfpp#274471.stp
Documentation: Blow-out guns doku/blp.pdf
3D CAD file (volume model) protected/cad/3d/70458/fachfpp#274471.stp
