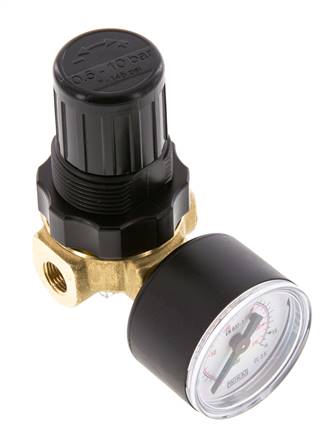

Mini pressure regulator G 1/8", 0,5 to 16 bar, non-resettable
{{ $t('shop.all.artikelnummer') }}:
DR 021-00-16
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Pressure reducer, not reversible (without secondary relieving)
Materials:
Body: brass, spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Input pressure:
max. 25 bar
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 30x1,5
Media:
Water, compressed air, neutral gases
Scope of delivery:
Pressure regulator including 40 mm pressure gauge without panel union nut
Flow:
330 l/min (corresponds to approx. 2,5 l/min with water as the medium)
Pressure reducer, not reversible (without secondary relieving)
Materials:
Body: brass, spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Input pressure:
max. 25 bar
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 30x1,5
Media:
Water, compressed air, neutral gases
Scope of delivery:
Pressure regulator including 40 mm pressure gauge without panel union nut
Flow:
330 l/min (corresponds to approx. 2,5 l/min with water as the medium)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
{{ $t('shop.display.artikel.info') }} DR021-00-16
| {{ $t('shop.all.gewicht') }} | 280 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571264598 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 622) atlas9_seiten/622.pdf
Documentation doku/drminiwasser.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/dr021-00-1644523.step
Documentation doku/drminiwasser.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/dr021-00-1644523.step
