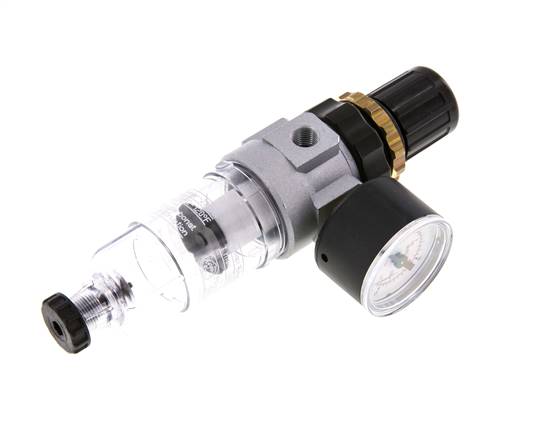

Mini filter regulator G 1/8", 0,2 to 6 bar

Version:
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter

Materials:
Body: die-cast zinc Z410 (model series 5: aluminium), diaphragms and seals: NBR, condensate container: polycarbonate (Model series Mini: spring hood: POM)

Temperature range:
-10 to +60 °C

Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar)

Condensate draining:
semi-automatic**

Media:
Compressed air, neutral gases

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Advantages:
•Automatic venting in the event of overpressure on the secondary side

Pressure gauge connection:
G 1/8"

Pore width in the filter:
5 µm

Max. condensate amount:
16 cm³

Switch panel thread:
M 30x1,5

Scope of delivery:
Pressure regulator including 40 mm pressure gauge

Flow:
350 l/min

Optional:
Version with metal bowl (1.5 - 25 bar) -M, automatic discharge*** -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC

Advantages:
•Handwheel can be locked by pressing it down

Thread	G 1/8"
Pressure regulation range [bar]	0,2 - 6
Container design	Plastic container
Condensate drain	Semi-automatic
Pressure gauge display [bar]	0 - 10
Mounting brackets	WHM 30
input pressure [bar]	1,5 - 16

{{ $t('shop.all.gewicht') }}	330 g / pcs
{{ $t('shop.all.gtin') }}	4050571293420
{{ $t('shop.display.artikel.zollwarennummer') }}	84811005
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
