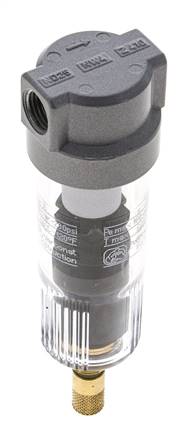

Mini filter G 1/4", Plastic container
{{ $t('shop.all.artikelnummer') }}:
DF 01 AM
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)
Pore width in the filter:
5 µm
Max. condensate amount:
16 cm³
Flow:
800 l/min
Optional:
Design with metal bowl (1.5 - 25 bar) -M, automatic drain* -AM, automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)
Pore width in the filter:
5 µm
Max. condensate amount:
16 cm³
Flow:
800 l/min
Optional:
Design with metal bowl (1.5 - 25 bar) -M, automatic drain* -AM, automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread | G 1/4" |
| Container design | Plastic container |
| Condensate drain | automatic |
| Replacement filter 5 µm | FILTER DF00-5 |
| input pressure [bar] | 1,5 - 16 |
{{ $t('shop.display.artikel.info') }} DF01AM
| {{ $t('shop.all.gewicht') }} | 195 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571937188 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84213925 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 605) atlas9_seiten/605.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
