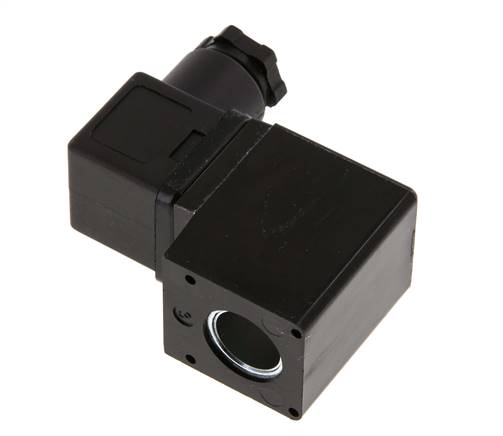

Magnetic coil 12 V DC, design P, plug size 3
{{ $t('shop.all.artikelnummer') }}:
MAG P 12V=
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Power-on time:
100% ED
Scope of delivery:
Solenoid coil including. plug or cable
Note:
These magnetic coils are intended exclusively as replacement parts for solenoid valves sold by us with specifications of the magnet shape. We take no liability for use with other valves!
100% ED
Scope of delivery:
Solenoid coil including. plug or cable
Note:
These magnetic coils are intended exclusively as replacement parts for solenoid valves sold by us with specifications of the magnet shape. We take no liability for use with other valves!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | P |
| Control voltage | 12 V DC |
| Power output | 13 W |
| Plug size | 3 |
| Outer dimensions [mm] | 30 x42 x 39 |
| Distance anchor holes L [mm] | 40 |
| Anchor holes, lower D1 [mm] | 14,8 |
| Anchor holes, upper D2 [mm] | 10,2 |
| Countersink, lower D3 [mm] | 18,0 |
| Countersink, upper D4 [mm] | 20,1 |
{{ $t('shop.display.artikel.info') }} MAGP12V=
| {{ $t('shop.all.gewicht') }} | 180 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571631932 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85059029 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 776) atlas9_seiten/776.pdf
3D CAD file (volume model) protected/cad/3d/73566/magp12v306330.stp
