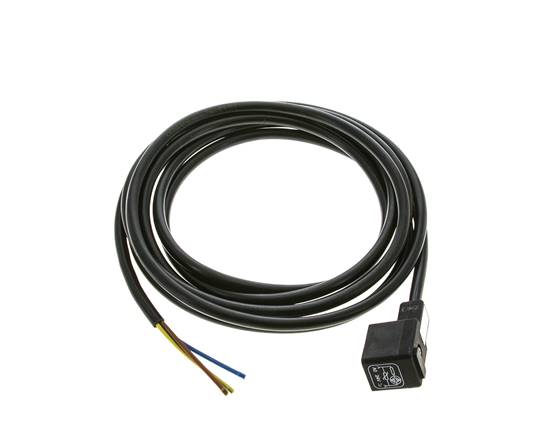

LED connector with 3 mtr cable, size 1 (Industry standard B)
{{ $t('shop.all.artikelnummer') }}:
KAB ST01 3 LED
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Prefabricated connection lines with in one case a plug acc. to DIN 43650 / EN 175301-803 / industrial standard, with yellow LED display and protection circuit and otherwise loose cable ends.
Temperature range:
-25 to +70 °C
Voltage:
24 V AC / DC, max. 5 A (size 0: max. 3 A)
Voltage tolerance:
± 25 %
Protection class:
IP 67
Cable:
PVC cable 3x 0.75 mm² (plug size 0: 3x 0.5 mm²)
Scope of delivery:
Plug with sprayed cable incl. screw and integrated seal.
Suitable:
These cables are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
Prefabricated connection lines with in one case a plug acc. to DIN 43650 / EN 175301-803 / industrial standard, with yellow LED display and protection circuit and otherwise loose cable ends.
Temperature range:
-25 to +70 °C
Voltage:
24 V AC / DC, max. 5 A (size 0: max. 3 A)
Voltage tolerance:
± 25 %
Protection class:
IP 67
Cable:
PVC cable 3x 0.75 mm² (plug size 0: 3x 0.5 mm²)
Scope of delivery:
Plug with sprayed cable incl. screw and integrated seal.
Suitable:
These cables are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Cable length [MTR] | 3 |
| Plug size | 1 |
| Standard | Industry standard B |
| Number of contacts | 2 & PE |
| Plug height | 27 |
{{ $t('shop.display.artikel.info') }} KABST013LED
| {{ $t('shop.all.gewicht') }} | 220 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571876029 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85444290 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 895) atlas9_seiten/895.pdf
