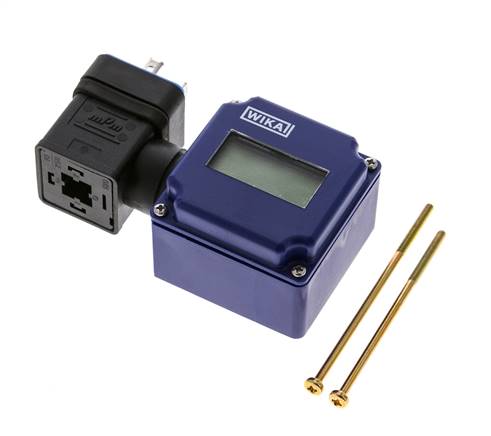

LCD plug-on display f. Trans-mitter
{{ $t('shop.all.artikelnummer') }}:
DAA 4
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:

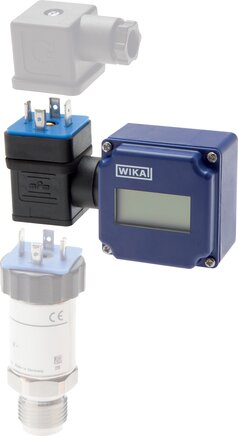

The plug-in display is inserted directly on the measurement transducer with 4 - 20 mA output and displays the measured value. The instrument is provided electrical energy from the circuit of the 4 - 20mA signal and does not need any additional auxiliary energy.
Materials:
Housing: ABS, front window: polycarbonate
Display:
4-digit LCD display, height of digits 10 mm
Temperature range:
0 to +50 °C
Protection class:
IP 65
Electrical connection:
A transmitter with 4-20 mA outlet in a 2-wire system and elbow plug DIN 43650 / EN 175301-803 (size 3, 4-pole)
Conversion rate:
5 measurements / second
Display accuracy:
± 0.2 % of span, ± 1 digit
Programming:
Using 3 keys under the housing face plate, menu guided: scaling of the display area, decimal point, cushioning
Dimensions:
front frame: 49 x 49 mm, depth: 35, 5 mm
Note:
WIKA Type A-AI-1
The plug-in display is inserted directly on the measurement transducer with 4 - 20 mA output and displays the measured value. The instrument is provided electrical energy from the circuit of the 4 - 20mA signal and does not need any additional auxiliary energy.
Materials:
Housing: ABS, front window: polycarbonate
Display:
4-digit LCD display, height of digits 10 mm
Temperature range:
0 to +50 °C
Protection class:
IP 65
Electrical connection:
A transmitter with 4-20 mA outlet in a 2-wire system and elbow plug DIN 43650 / EN 175301-803 (size 3, 4-pole)
Conversion rate:
5 measurements / second
Display accuracy:
± 0.2 % of span, ± 1 digit
Programming:
Using 3 keys under the housing face plate, menu guided: scaling of the display area, decimal point, cushioning
Dimensions:
front frame: 49 x 49 mm, depth: 35, 5 mm
Note:
WIKA Type A-AI-1
{{ $t('shop.display.artikel.info') }} DAA4
| {{ $t('shop.all.gewicht') }} | 185 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571245146 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85312040 |
| {{ $t('shop.all.hersteller') }} | WIKA (WEEE DE92770372) |
