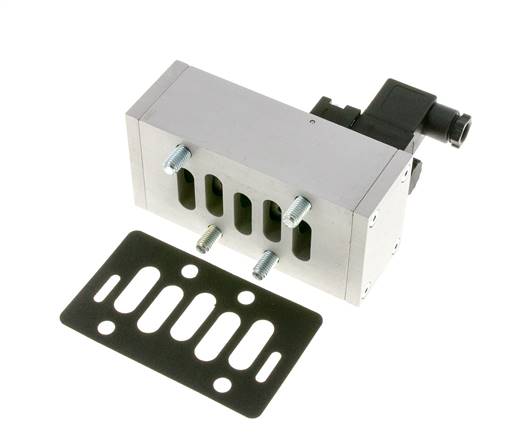

ISO valve (size 3), 5/2-way spring return, 115 V AC
{{ $t('shop.all.artikelnummer') }}:
MI 03511HN 115V
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, internal parts: stainless steel and brass, seal: plastic, NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
N (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
Body: anodized aluminium, internal parts: stainless steel and brass, seal: plastic, NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
N (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 115 V AC |
| Switching | 5/2-way |
| function | spring return |
| ISO size | 3 |
| flow [l/min] | 4150 |
| Operating pressure [bar] | 2 - 10 |
| Power consumption (AC) [VA] | 4 |
| Spare solenoid coil | MAG N 115V |
{{ $t('shop.display.artikel.info') }} MI03511HN115V
| {{ $t('shop.all.gtin') }} | 4050571492168 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 757) atlas9_seiten/757.pdf
3D CAD file (volume model) protected/cad/3d/70001/mi03511hn115v#248985.stp
3D CAD file (volume model) protected/cad/3d/70001/mi03511hn115v#248985.stp
